Axiomtek - a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency - is announcing the arrival of the eBOX100-312-FL, its latest fanless embedded system coming with ultra-slim size, low power consumption and fundamental features. The fanless embedded system is powered by the Intel® Celeron® processor N3350 (codename: Apollo Lake) with turbo boost up to 2.4 GHz. It is equipped with one 204-pin DDR3L-1600 SO-DIMM socket with up to 8GB system memory. In order to provide excellent multimedia performance, the embedded box computer comes with two HDMI ports for dual-view display with up to 4K resolution. To enhance wireless communication capabilities, this compact embedded system provides two PCI Express Mini Card slots, one SIM card slot, and four antenna connectors. With its compact size and basic functions, the entry-level eBOX100-312-FL is suitable for smart retail and light industries.
“Combined with Microsoft Azure and connected with devices such as RFID, sensor or digital signage via USB/LAN ports, the eBOX100-312-FL can help users rapidly implementing IIoT applications and maximizing performance,” said Janney Lee, a product manager of Product PM Division at Axiomtek. “It was designed for reliable use in industrial environments with an IP40-rated enclosure, withstanding an extended operating temperature range from -5°C to +60°C, and up to 3G vibration endurance.”

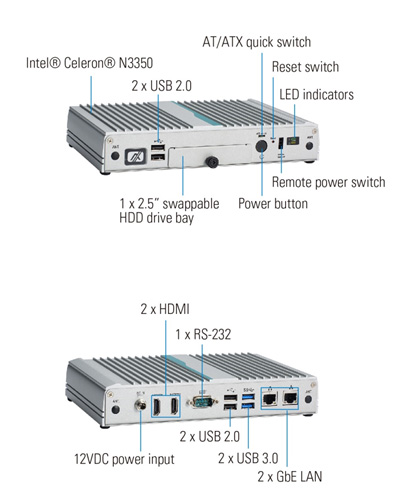

Carrying a brand new design, the ultra-slim box PC supports 12VDC screw-type power input and rich I/O interfaces including two Gigabit Ethernet ports, one RS-232 port, six USB 3.0 ports and two HDMI connectors. It also comes with one swappable 2.5” SATA HDD and one AT/ATX quick switch. Besides, this space-saving embedded system supports Jumbo Frame (9K), wake-on-LAN (WoL) and PXE Remote Boot while compatible with Windows® 10 IoT. Furthermore, wall mount, VESA arm, and DIN-rail kits are available upon request.
The power-efficient Intel® Apollo Lake-based eBOX100-312-FL will soon be available in June 2017. For more product information or pricing, please visit our global website at www.axiomtek.com or contact one of our sales representatives at email@example.com.
- Fanless design with low power consumption
- Intel® Celeron® N3350 2.4 GHz dual core
- 1 COM port, 6 USB ports, and 2 GbE LANs
- Two full-size PCIe Mini Card for WLAN and WWAN
- One 2.5" swappable SATA HDD drive bay for easy maintenance
- Supporting Jumbo Frame(9k), WoL, PXE Remote Boot
