Axiomtek - a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency – is proud to announce the arrival of the tBOX100-838-FL, a small footprint fanless embedded system certified with E-Mark and ISO 7637 for vehicle applications. The rugged tBOX100-838-FL comes with the onboard low power quad-core Intel® Atom™ processor E3845 along with onboard DDR3L memory up to 4GB. The compact vehicle PC features five BNC connectors with four video-in and one audio-in as well as one capture card for DVR surveillance applications. The capture SDK is ready and integrated to support system integrators to speed up the solution development. In addition, it was designed to withstand a wide temperature range from -40°C to +60°C and vibration up to 3 Grms, equipped with intelligent power management at wide voltage range 9-36VDC. The tBOX100-838-FL is also compliant with EN 50155, EN 50121, DNV 2.4, and IEC 60945 for use in rolling stock and marine industries.
“Axiomtek’s tBOX100-838-FL is our brand new embedded system targeted at vehicle, railway and marine markets. The cost-effective embedded system adopts a heavy-duty aluminum extrusion and steel case to withstand the rigors of day-to-day operation. The compact size of the fanless transportation computer ensures that it can fit into a variety of space constricting environments,” said Jerry Huang, a product manager of Product PM Division at Axiomtek. “To ensure that the system can be integrated into various locations, the tBOX100-838-FL supports DIN-rail and wall mount. The feature-rich system is ideal for security surveillance, transportation controller, data transfer and management.

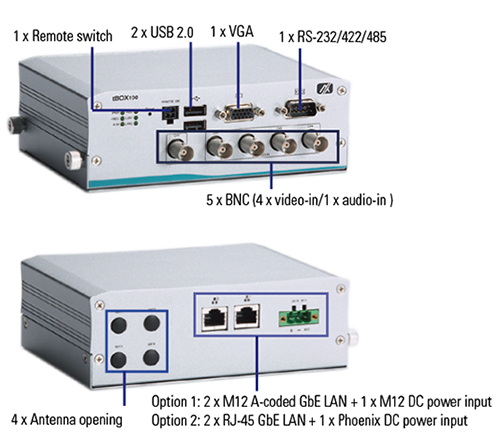

The all-in-one tBOX100-838-FL features multiple I/O design including two GbE LANs (M12 or RJ-45 connector), one DC power input (M12 or phoenix connector), four antenna openings, one COM, five BNC (four video-in and one audio-in), one VGA, two USB 2.0 ports, one remote power switch, and one reset button. The unit comes with one full-sized PCI Express Mini Card slot and one SIM card slot for 3G/4G, GPS, Wi-Fi and Bluetooth applications. For system integrators with extensive storage needs, the Intel® Atom™-based transportation box PC offers one 2.5” SATA HDD and one mSATA. Besides, the significant anti-vibration can endure up to 3 Grms with SSD and 1 Grm with HDD to prevent any damage caused by vibration.
The tBOX100-838-FL - Axiomtek’s rugged embedded computer for transportation - is expected to be available in mid-August, 2017. For more product information or pricing, please visit our global website at www.axiomtek.com or contact one of our sales representatives at email@example.com.
- CE (Class A), E-Mark and ISO 7637 certified; EN 50155, EN 50121, and DNV 2.4, IEC 60945 compliant
- Intel® Atom™ E3845 4C@1.91 GHz onboard (codename: Bay Trail)
- DDR3L-1333 4GB memory onboard
- Wide operating temperature of -40°C to +60°C
- Intelligent power management solution (9-36VDC wide power input)
- Compact size, multiple I/Os, DIN-rail and wall mount
- 1 PCI Express Mini Card slot and 1 SIM card slot
