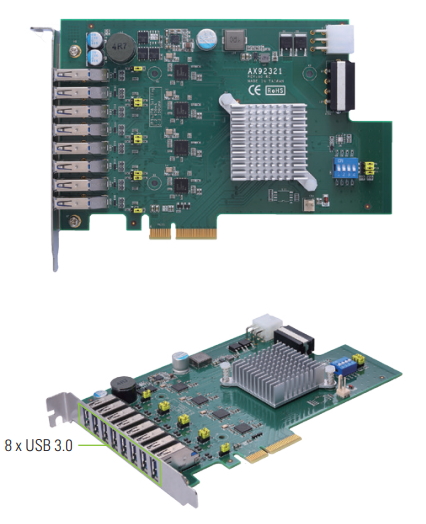

Axiomtek – a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency – is proud to unveil its AX92321 – a 4-port/8-port USB 3.0 PCIe x4 frame grabber card designed for connecting USB 3.0 industrial cameras in machine vision and surveillance applications.
The AX92321 frame grabber card has four independent Renesas μPD720202 USB 3.0 host controllers with PCI Express x4 Gen2 interface to enable each USB 3.0 port to achieve up to 5Gbps bandwidth when operating four ports simultaneously. In addition, the USB 3.0 PCIe x4 Gen 2 frame grabber card features on-board regulated 5VDC power supply with user configurable 900mA and 1500mA current limit via jumper settings to supply stable power for various external USB devices. It also supports software programmable per-port power on/off control for fault recovery operations.
"Axiomtek's AX92321 is designed to help customers develop and deploy machine vision and surveillance applications in factory automation or smart cities. It offers plug and play functionality and ease of use advantages for users. With this USB 3.0 PCIe frame grabber card, customers can add USB 3.0 connectivity to their systems which allow users to benefit from features of the card, and can increase the number of existing USB 3.0 ports for high-end applications." said Wayne Chung, a product manager at Axiomtek.
The AX92321 is also compliant with USB 3.0 Rev.1.0 and Intel® xHCI Rev.1.0, and is able to operate under a wide operating temperature range of 0°C to 70°C for harsh environments. Furthermore, this USB 3.0 PCI Express x4 card supports versatile operating systems such as Windows® 7 and Windows® 10. Axiomtek's 4-port and 8-port of AX92321 cards are now available for purchase. For more product information or pricing, please visit our global website at www.axiomtek.com or contact one of our sales representatives at email@example.com.
- Four or eight USB 3.0 ports
- Four independent USB 3.0 host controllers
- 900mA/1500mA max. per port configurable via jumper settings
- Compliant with USB 3.0 Rev.1.0 and Intel® xHCI Rev.1.0
- PCI Express x4 interface
- Operating temperature from 0˚C to 70°C
- Supports Windows® 7/10
- Supports power on/off via software settings
