Axiomtek - a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency – is proud to announce its eBOX671-521-FL, the fanless GPU-based edge system now supports the newest 9th generation Intel® Core™ i7/i5/i3 (Coffee Lake / Coffee Lake Refresh-S) processor. The reliable embedded vision system supports MXM 3.1 type A graphics modules – the NVIDIA GTX1030 and NVIDIA GTX1050, allowing to enhance the performance of the visual display. The remarkable GPU computing embedded system presents high performance for a wide range of applications in edge computing, machine vision, deep learning, and artificial intelligence of things.
The eBOX671-521-FL continues the design elements of eBOX671 series – rich I/O connectivity, modularized design and application-oriented platform. It comes with dual DDR4 ECC/non-ECC SO-DIMM slots (ECC by option) for up to 64GB of system memory. Moreover, this system is equipped with four Gigabit 802.3at (PoE, Power-over-Ethernet) compliant Ethernet ports with a total power budget of 60W. In addition, the robust industrial embedded system with IP40-rated heavy-duty aluminum extrusion has a wide operating temperature range of -20°C to 60°C and vibration endurance for up to 3G. It provides a reliable solution for extremely harsh environments.

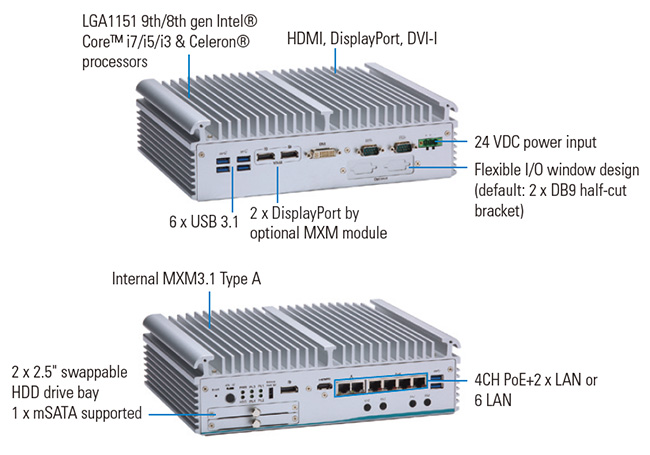

”Axiomtek’s high-performance eBOX671-521-FL comes with 4-CH PoE and MXM 3.1 Type A slot for AI inference, GPU computing, machine learning and image processing. The eBOX671-521-FL has scalable CPU options with the 9/8th generation Intel® Core™ or Intel® Celeron® processors and comes with an option of Intel® Q370 or Intel® C246 chipset. It offers rich I/O ports for a full range of peripheral connectivity. It is equipped with two RS-232/422/485, one DVI-I, one HDMI, one VGA, two DisplayPort through the optional MXM graphics kit, four USB 3.1 Gen2, two USB 3.1 Gen1, two Gigabit Ethernet port. It also offers a Phoenix-type VDC power input connector, one AT/ATX quick switch, one ATX power switch and four SMA-type antenna openings,” said Janney Lee, a product manager of Product PM Division at Axiomtek.” Furthermore, this embedded system also comes with a flexible I/O window slot for ease of customization to meet the requirements of various applications.”
To satisfy all the requirements of industrial AIoT applications, from smart production, machine automation, production testing to smart warehouse, the eBOX671-521-FL is highly expandable with two full-size PCL Express Mini Card slots, two SIM slots and one internal MXM3.1 type A connector. It has two swappable 2.5” SATA HDD drive bays with Intel® RAID 0&1 for extensive storage needs. Besides, this powerful GPU computing embedded system supports Windows 10 IoT and Linux operating system and also supports Axiomtek’s exclusive AXView 3.0 intelligent remote monitoring software. Its excellent GPU computing performance and outstanding features provide an ideal solution for industrial AIoT. Axiomtek’s eBOX671-521-FL is now available for purchase. For more product information or pricing, please visit our global website at www.axiomtek.com or contact one of our sales representatives at email@example.com.
- 9th/8th gen Intel® Core™ i7/i5/i3 & Celeron® with Intel® Q370 chipset (Coffee Lake / Coffee Lake Refresh -S)
- 4-CH PoE (IEEE802.3at compliance) & 2 GbE LAN or 6 GbE LAN
- Dual swappable 2.5" SATA HDD drive bay with RAID 0&1
- Supports MXM 3.1 type A graphics module (optional)
- DVI-I, HDMI, and DisplayPort with triple-view supported
- AXView 3.0 intelligent remote monitoring software for IIoT
