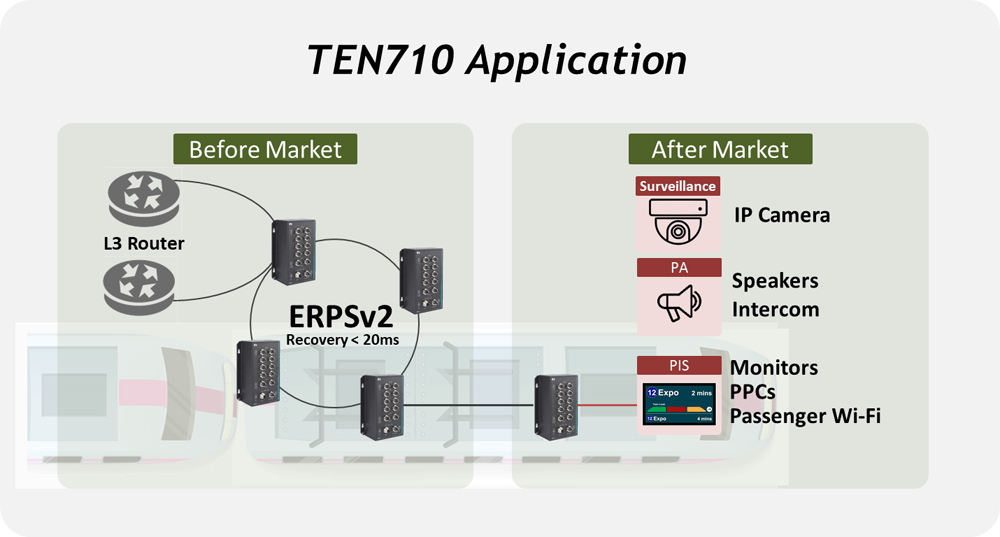

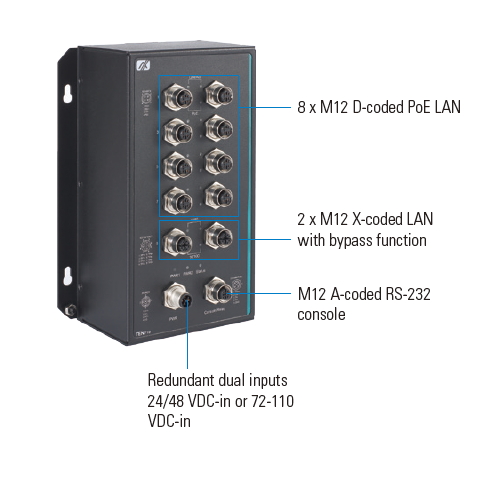

Axiomtek – a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency – is pleased to introduce its TEN710MW and TEN710UW, the Layer 2 managed/unmanaged industrial Ethernet switches with EN 50155 and EN 45545-2 standards for railway-related applications. The TEN710UW unmanaged switch is an economical solution for high-bandwidth applications, while the TEN710MW managed switch provides not just high-bandwidth capabilities, but also security enhancements, such as Ethernet Ring Protection Switching (ERPS), Quality of Service (QoS), Link Aggregation Control Protocol (LACP), network control, and other security features. The smart switches come with eight M12 D-Coded 10/100 Mbps PoE ports, two M12 X-Coded 10/100/1000 Mbps LAN ports with bypass and one M12 A-coded RS-232 console port. The TEN710MW and TEN710UW are designed to achieve a high degree of stability and scalability for use in the passenger information system, security surveillance, transportation IoT, diagnosis management of railway-related applications.
“Axiomtek’s TEN710MW and TEN710UW were built to simplify complex network integration and scalability. To reduce the installation space and effort, these intelligent Ethernet switch provide up to 8 IEEE 802.3af/at compliant PoE with 150W total power budget for onboard devices including wireless devices, IP cameras, and IP phones without extra power wiring requirements,” said Eason Yang, a product manager of Product PM Division at Axiomtek. “With the compact size and flexible mounting design, the TEN710MW and TEN710UW are well-suitable for a wide range of surveillance applications in transportation fields.”
The TEN710MW and TEN710UW are designed to operate in extremely harsh environments with IP54-rated enclosure and M12 connectors for protection against dust and water. They can operate under a wide temperature range from -40°C to +75°C to ensure constant and robust connections. To meet different requirements of railway applications, the durable TEN710MW and TEN710UW come with redundant dual inputs that support a wide voltage input range from 24 to 48 VDC or 72 to 110 VDC. Meanwhile, the switches also provide smart per-port power management, including enable/disable, priority setting, overloading protection, PD active check, PoE scheduling, PD classification, and power feeding detecting capacity on PD. The transportation certified Layer 2 Ethernet switches can provide customers sustainable network reliability as well as considerable flexibility for diverse applications at different locations.
Axiomtek’s TEN710MW and TEN710UW are now available for purchase. For more product information or customization services, please visit our global website at www.axiomtek.com or contact one of our sales representatives at firstname.lastname@example.org.
- EN 50155 layer 2 managed/unmanaged Ethernet switch for transportation application
- Power boost for PoE+, and ample PoE power budget max. 150W
- Wide operating temperature range from -40°C to 75°C for harsh environment
- Supports ERPSv2/QoS/LACP and more network control, and security features
- Reliable IP54 and 5 years warranty (15 years of product life support)
