Axiomtek - a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency – is proud to introduce the UST200-83H-FL, a palm-sized in-vehicle IoT gateway powered by the low-power consumption Intel® Atom™ x5-E3930 processor (codename: Apollo Lake-I). It is certified with CE and FCC and is in compliance with ISO 7637-2. With the function of the Smart Ignition power control, the rugged embedded system can arrange a power on/off schedule to protect the vehicle battery from unstable voltage. This high-performance IoT gateway delivers an excellent price-performance ratio for in-vehicle applications.
“The Axiomtek UST200-83H-FL offers a power-efficient design to maximize operational efficiency. This well-developed in-vehicle box PC is equipped with Smart Ignition power control to meet various in-vehicle application needs. By switching the power mode, it supports 12 and 24 VDC typical automotive power input or wide-range 9 to 36V DC power input. The flexible IoT gateway is designed for all kinds of in-vehicle applications from the shuttle buses, police cars, ambulances, cold chain trucks, and forklifts to heavy-duty vehicles,” said Eason Yang, a product manager of Product PM Division at Axiomtek. “Thanks to its ruggedized design for harsh environments, the UST200-83H-FL is able to operate under a wide temperature range from -40°C to +70°C and vibration of up to 3 Grms. This IoT gateway supports both wall mounting and DIN-rail mounting. Its ultra-lightweight and compact design is ideal for space constraint environments.”

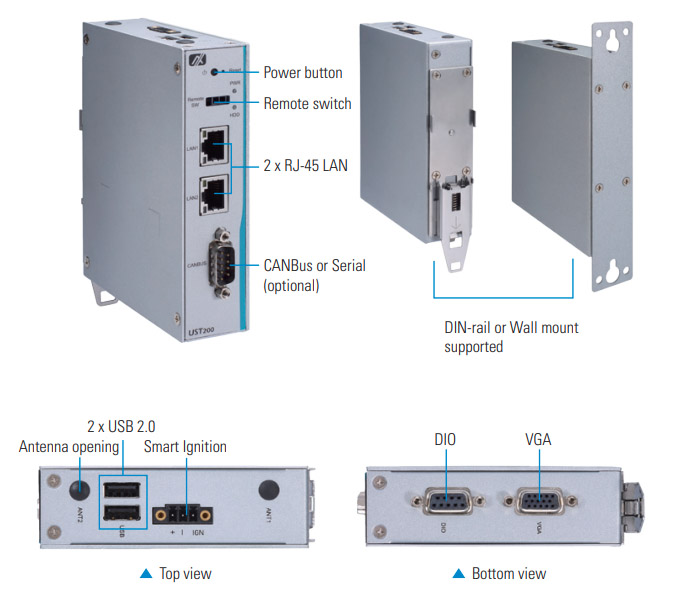

The fanless UST200-83H-FL comes with one DDR3L-1866 SO-DIMM slot with up to 8GB of system memory. It has one full-size PCI Express Mini Card slot (USB/PCIe interface with SIM socket) and one half-size PCI Express Mini Card slot (mSATA/USB/PCIe interface) for a wide selection of modules. It has a half-size mSATA shared with its PCI Express Mini Card slot for storage. Its I/O options include one DB9 RS-232/422/485 or CANBus 2.0 A/B supporting SocketCAN, one VGA port, two USB 2.0 ports, two RJ-45 LAN ports with isolation and one DB9 8-bit programmable DIO. This cost-efficient in-vehicle PC is compatible with Windows®10 IoT and Linux. Besides, it supports Axiomtek’s exclusive AXView software to fulfill the requirement of remote monitoring.
The UST200-83H-FL is now available for purchase. For more product information or customization services, please visit our global website at www.axiomtek.com or contact one of our sales representatives at email@example.com.
- CE, FCC certified; ISO 7637-2 compliant
- Intel® Atom® x5-E3930 processor (code name: Apollo Lake)
- Extremely cost-effective with fanless and cableless design
- Smart Ignition for power on/off schedule, vehicle battery protection and different power mode
- Wide operating temperature range from -40°C to +70°C
- Supports 12 & 24 VDC typical in-vehicle and 9-36 VDC power input
- Supports SocketCAN, 1 COM or CAN, 2 USB, and 2 GbE LAN
- 8-bit programmable DIO for transportation IoT gateway applications
