Axiomtek, one of the world's leading designers and manufacturers of innovative, high performance and reliable PC-based industrial computer products, has launched IPC922-215-FL, an energy-efficient fanless 2-slot industrial system with rugged mechanism and optimized expandability. The extreme compact IP30-rated IPC922-215-FL utilizes an onboard Intel® Celeron® quad core processor J1900 2.42GHz with one DDR3L 1333 up to 8 GB memory. To fulfill difference application needs, the rugged Intel® Bay Trail SoC barebone embedded system provides great expansion capability with two flexible PCI/PCIe slots that can be customized. Additionally, the Axiomtek IPC922-215-FL can withstand temperatures ranging from -10°C to 50°C, and is equipped with a wide range 10~30 VDC power input for industrial application.
“Axiomtek’s IPC922-215-FL is a rugged and highly configurable fanless industrial PC with PCI/PCIe expansion for a variety of embedded controller applications. It is also easy to maintain and upgrade, with its convenience front-facing I/O access and flexible expansion options. The Intel® Celeron® quad-core fanless industrial PC can be easily wall-mounted on any surface, making it easier to apply in a wider range of environments. This 2-slot rugged industrial computer is an application-ready embedded platform targeted at industrial automation, smart factory, gaming, DVR and digital signage applications,” said Jack Tseng, product manager of Product PM Division at Axiomtek.

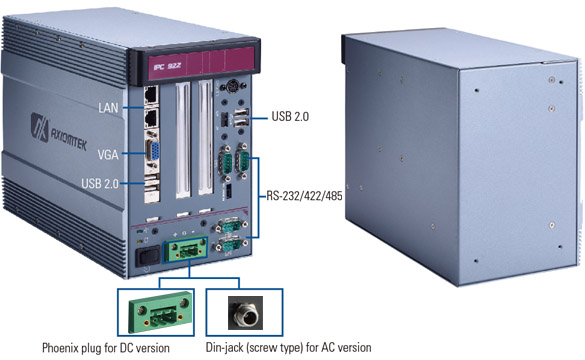

The IPC922-215-FL supports one 2.5” SATA HDD and an onboard CompactFlash™ for storage. Moreover, the all-in-one Intel® Bay Trail SoC shoebox computer offers rich I/O connections on the front side of the housing, including two Gigabit LAN ports, four USB 2.0 ports, four RS-232/422/485 ports, one VGA port, and PS/2 keyboard and mouse. Moreover, the 2-slot fanless embedded PC supports various power protection including OVP (Over voltage protection), OTP (over temperature protection), OPP (over power protection) and SCP (over circuit protection) for more system safety.
The Axiomtek IPC922-215-FL rugged shoebox computer will be available around the early of March, 2016. For more product information or pricing, please visit our global website at www.axiomtek.com or contact our sales representative at firstname.lastname@example.org
- 2-slot fanless industrial system – IPC922-215-FL
- Intel® Celeron® Processor J1900 (up to 2.42 GHz) Bay Trail SoC quad-core
- Fanless & ventilation-free
- Supports 2 expansion slots
- 10~30V DC to DC power supply
- Compact & front-facing I/O design
- Wall-mount supported
