Axiomtek, one of the world's leading designers and manufacturers of innovative, high performance and reliable PC-based industrial computer products, is pleased to introduce PICO500, an extreme compact pico-ITX embedded board supporting 6th generation Intel® Core™ i7/i5/i3 & Celeron® processor (code name: Skylake). The tiny PICO500 supports one 260-pin DDR4-2133 SO-DIMM slot with up to 16 GB system memory capacity. Its pico-ITX form factor offers a good solution for an extremely compact performance system; meanwhile, the industrial motherboard is built to withstand wide temperature conditions ranging from -20°C to +70°C (-4°F to +158°F) with active thermal solution.
The newest PICO500 is compatible with two optional I/O boards; the AX93275 and AX93276 for additional HD audio, USB 3.0, PCIe x1, DDI, and UARTs interfaces. One HDMI and LVDS with Intel® integrated GFX graphic engine delivers Ultra HD 4K display support. The super compact-size 6th generation Intel® CoreTM-based pico-ITX motherboard is a perfect fit for vehicle PCs, small media entertainment systems, industrial automation systems, medical imaging, gaming, and other Industrial Internet of Things (IIoT) designs. “The Axiomtek PICO500 employs the 6th generation Intel® Core™ processor that provides the best balance between performance and expandability. It combines all advantages for customers who need an embedded board with extreme small form factor, flexible configuration, rich I/O, and high performance,” said Michelle Mi, product manager of Product PM Division at Axiomtek.

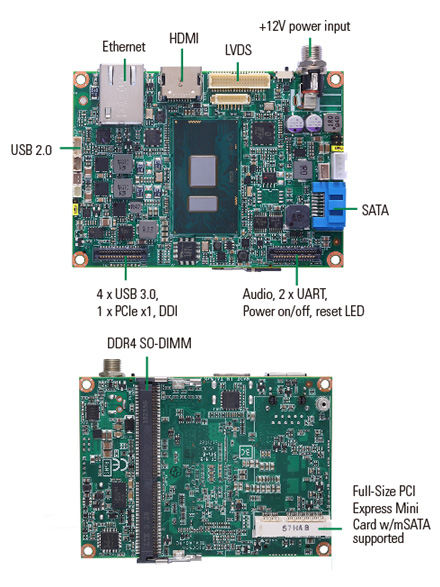

The durable PICO500 comes with advanced connectivity including one USB 2.0 ports, one gigabit Ethernet, HD audio, HDMI, and 18/24-bit single/dual channel LVDS. Considering various demands and networking requests, the tiny embedded board comes with one full-size PCI Express Mini Card on the rear side. Its storage interfaces include an SATA HDD and mSATA support on the PCI Express Mini Card slot. To ensure reliable operation, the small form factor embedded board supports watchdog timer and hardware monitoring. This outstanding embedded SBC runs well with Windows® 8.1 and 10 operating systems. Hence, the industrial-grade embedded pico-ITX motherboard also supports Intel® AMT 11 technology for better remote management (on Intel® Core™ i7 & i5 processor only).
The extreme compact PICO500 is available to order. For more product information or pricing, please visit our global website at www.axiomtek.com or contact one of our sales representatives at email@example.com.
- 6th generation Intel® Core™ i7/i5/i3 & Celeron® processor (Codename: Skylake)
- 1 260-pin DDR4-2133 SO-DIMM max. up to 16 GB
- 1 USB 2.0 and 1 Gigabit LAN ports
- 1 Full-size Mini Express Card slot with mSATA supported
- Wide range temperature support from -20°C to +70°C (-4°F to +158°F) with active thermal solution
- Intel® AMT 11 supported (Intel® Active Management Technology)
