• 2U rackmount design in depth of 450 mm (AX61222TP)/ 475 mm (AX61220TP)

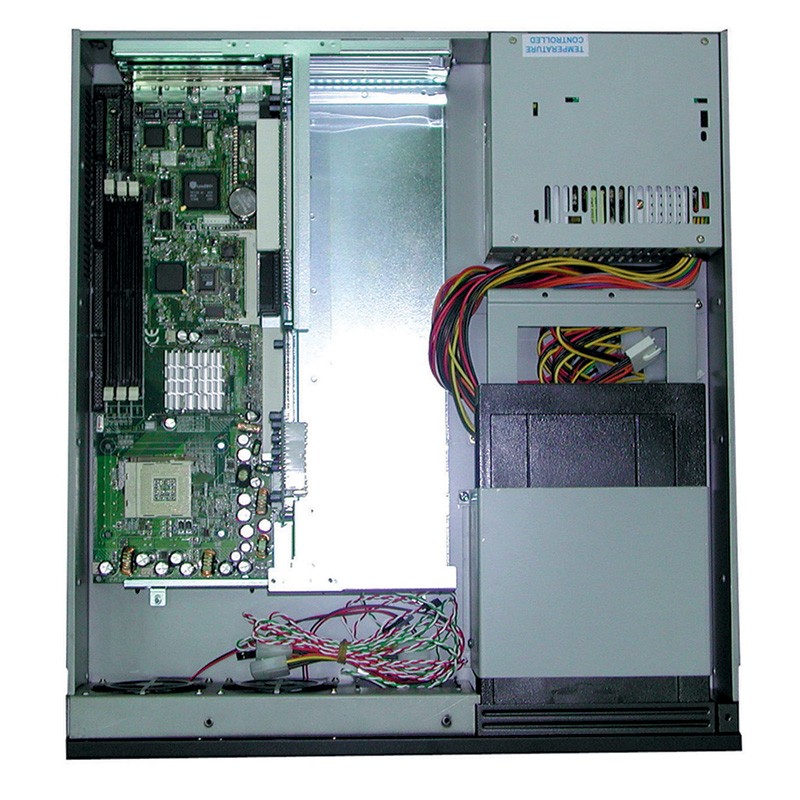

• PICMG SBC structure with 5 free slots for expansion
• Front-accessible one 5.25" HDD drive bay, one slim-line
• CD-ROM, one 3.5" HDD drive bay, and one internal HDD drive bay

產品簡介

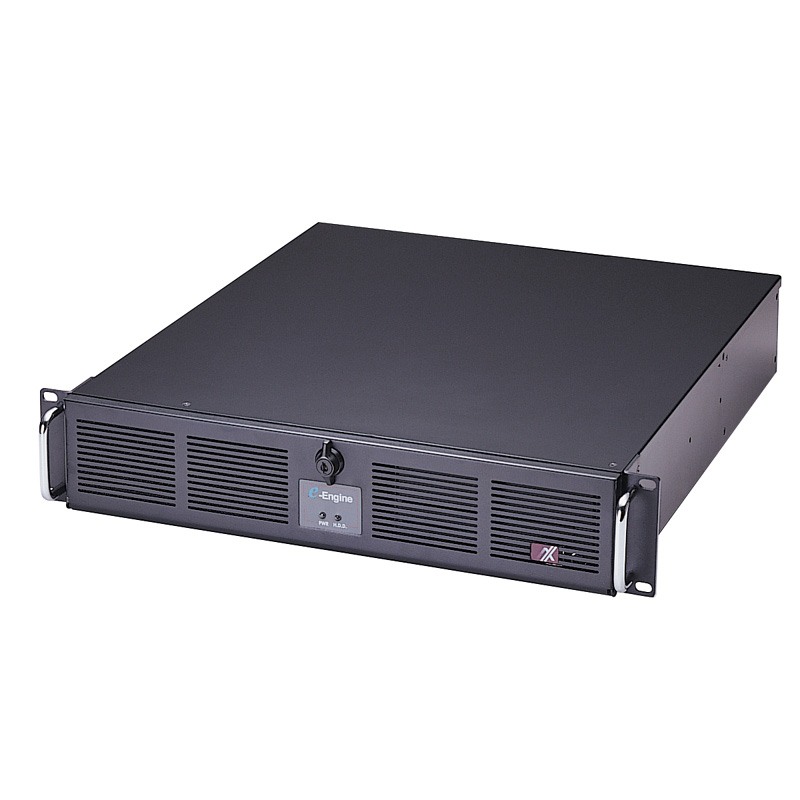

The AX61222TP and AX61220TP are compact 2U-high rackmount industrial computer chassis designed for space-limit applications. They can accommodate a five-PCI/ISA backplane and have easy-to-replace fans and filter on the front panel. The front access I/O ports and drive bays are designed for ease access and maintenance. Furthermore, they have various power supply can be chose, such as 300W ATX (HRP/PFC), 400W ATX(PFC) and 500W ATX (PFC), upon the system requirement.

• AX61222TP(AX61220TP)/300
  With ATX 300W power sapply
• AX61222TP(AX61220TP)/400
  With ATX 400W power sapply
• AX61222TP(AX61220TP)/500
  With ATX 500W power sapply

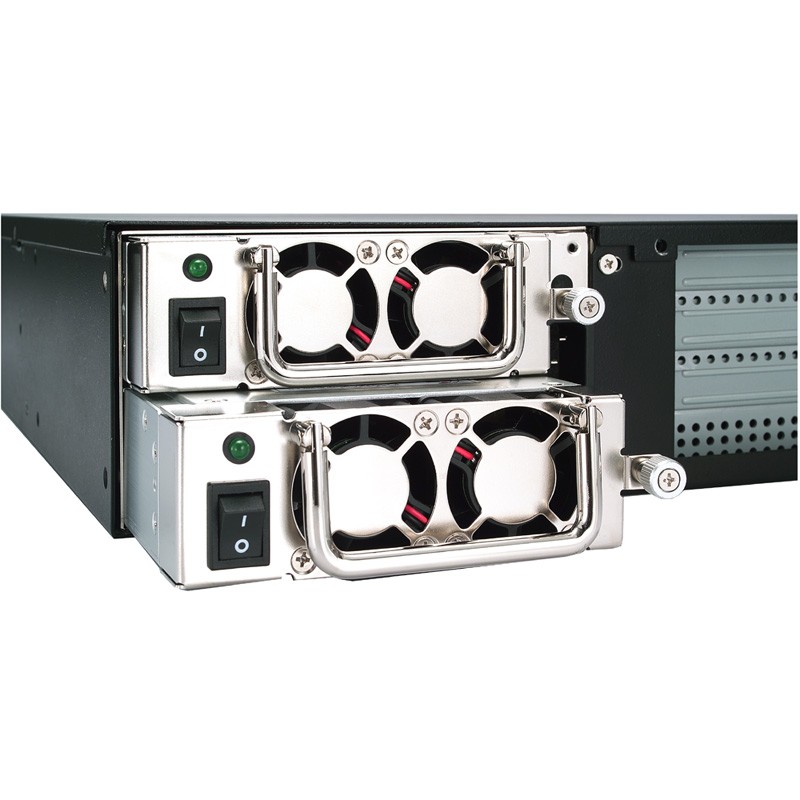

• Power Supply Options
  PS300-XP2, PS300-HRP, PS400-XP2, PS500-XP2, PS400-HRP, PS501-HRP

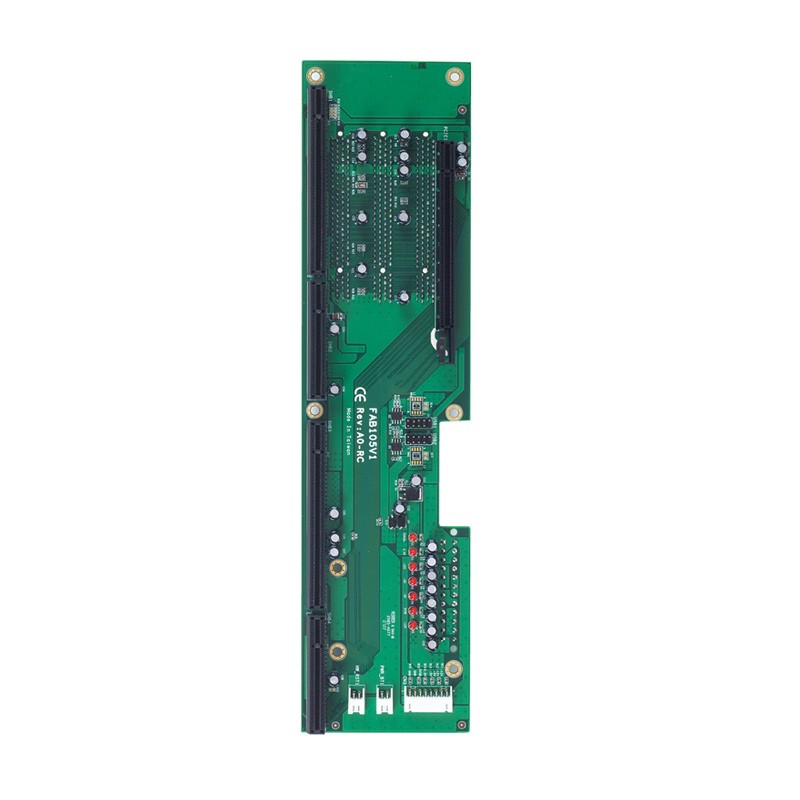

• Backplane Options
  ATX6022/6VP4, FAB105-V1, FAB205, FAB210
