MANO315

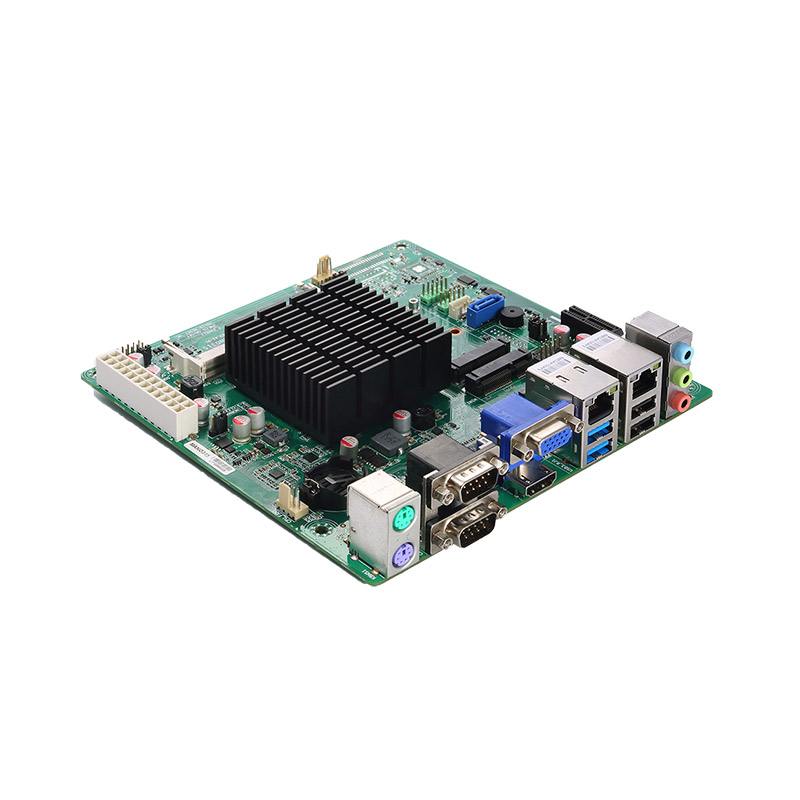

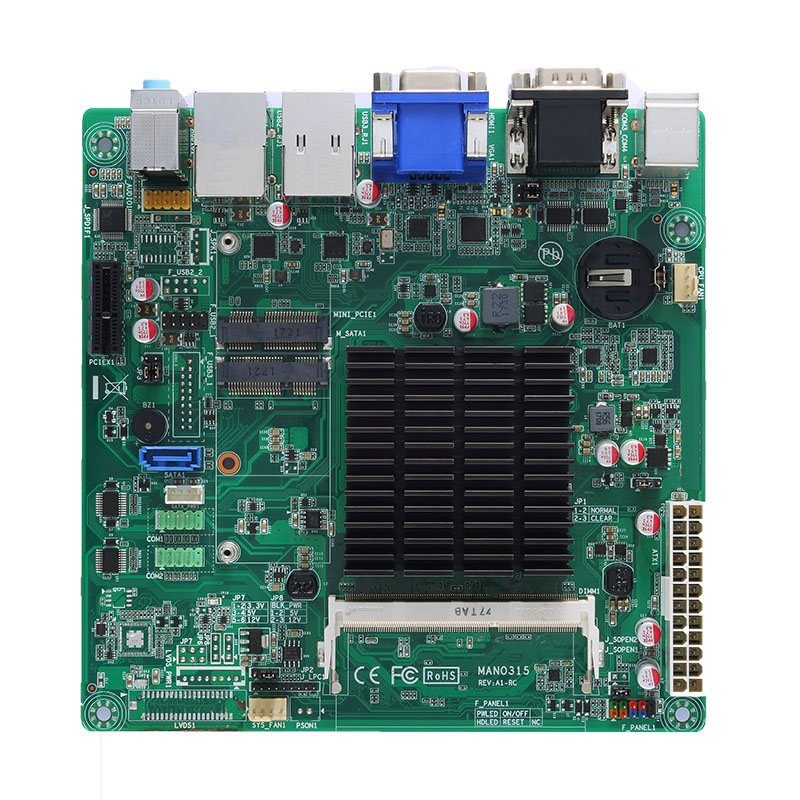

Mini-ITX SBC with Intel® Celeron® Processor J3355, VGA, HDMI, USB 3.0, PCI Express Mini Card Slot, mSATA and HD Audio

產品階段：Available

產品特色

CPU	Intel® Celeron® processor J3355
Chipset	SoC integrated
System Memory	1 x 204-pin SO-DIMM DDR3L-1866, up to 8GB
BIOS	AMI
COM	2 x RS-232 (rear I/O with +5V supported) 2 x RS-232
USB	2 x USB 2.0 (internal) 2 x USB 3.0 2 x USB 2.0 (rear I/O)
Ethernet	2 x 10/100/1000 Mbps (Realtek RTL8111F)
Display	1 x VGA 1 x HDMI
Digital I/O	N/A
Audio	Mic-in/Line-out
Storage	1 x SATA-600 1 x mSATA
Expansion	1 x PCIe x1 1 x PCI Express Mini Card slot
Others	1 x PS/2 keyboard and mouse
Battery	Lithium 3V/220 mAH
Power Input	N/A
Watchdog Timer	255 levels, 1 to 255 sec.
Hardware Monitoring	Yes
Operating Temperature	0°C to +60°C (+32°F to +140°F)
Relative Humidity	10% to 95% relative humidity, non-condensing
Dimensions	170 x 170 mm
Board Thickness	1.6 mm
Certifications	CE

MANO315VHGGA-J3355 (P/N-E38M315100)
Mini-ITX SBC with Intel® Celeron® processor J3355 (2.0 to 2.5 GHz, 2MB cache, 10W), VGA, HDMI, 2 GbE LAN, 4 COM, USB 3.0, PCI Express Mini Card slot and HD audio
593M8810300E
COM port cable, P=2.0 mm, L=300 mm
594M5002A00E
6-pin wafer to PS/2 cable, P=2.0 mm, L=200 mm
59384500100E
Audio cable with bracket, P=2.0 mm, L=420 mm
59386831000E
2-port USB cable with bracket, 5-pin header, P=2.54 mm, L=180 mm
594P8800600E
SATA power cable, 4-pin to 15-pin, P=2.0 mm, L=200 mm
593M8400400E
Audio cable, P=2.54 mm, L=300 mm

Date	Description	Version	Download File
2019/01/14	Win10_64_TXE	V1.0	178.8 MB
2019/01/14	Win10_64_Serial IO	V1.0	6.1 MB
2019/01/14	Win10_64_Audio	V1.0	207.4 MB
2019/01/14	Win10_64_LAN	V1.0	20 MB
2019/01/14	Win10_64_Graphic	V1.0	238.8 MB
2019/01/14	Win10_64_Chipset	V1.0	5.1 MB

Date	Description	Version	Download File
2019/05/21	User's Manual	V2.0	3.3 MB

Date	Description	Version	Download File
2021/12/03	UKCA Declaration of Conformity		62 KB
2021/04/15	CE-Conformity Declaration		130 KB
