產品特色
- 2 or 4 independent Intel® Ethernet Controller i210-AT
- Supports 9.5KB Jumbo Frame and IEEE 1588
- Supports two or four GbE LAN ports
- PCI Express x4 interface
- Operating temperature from 0˚C to 70°C
產品簡介

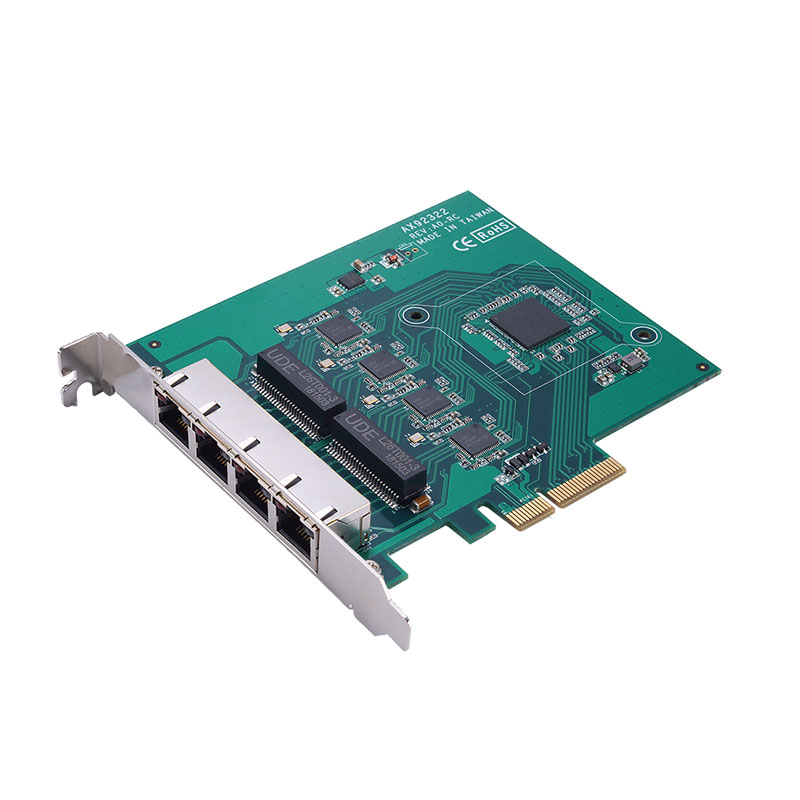

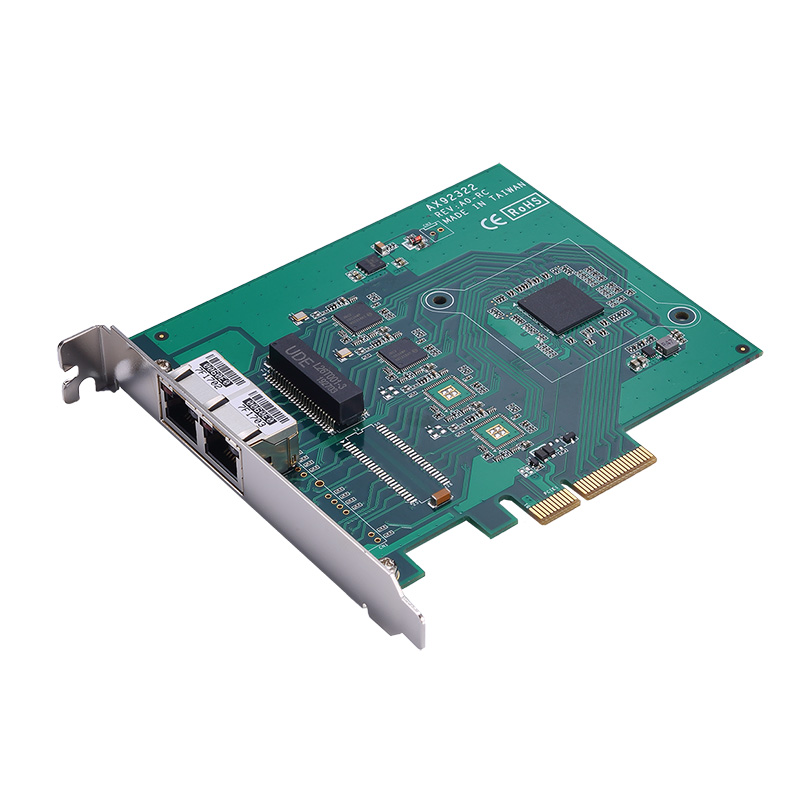

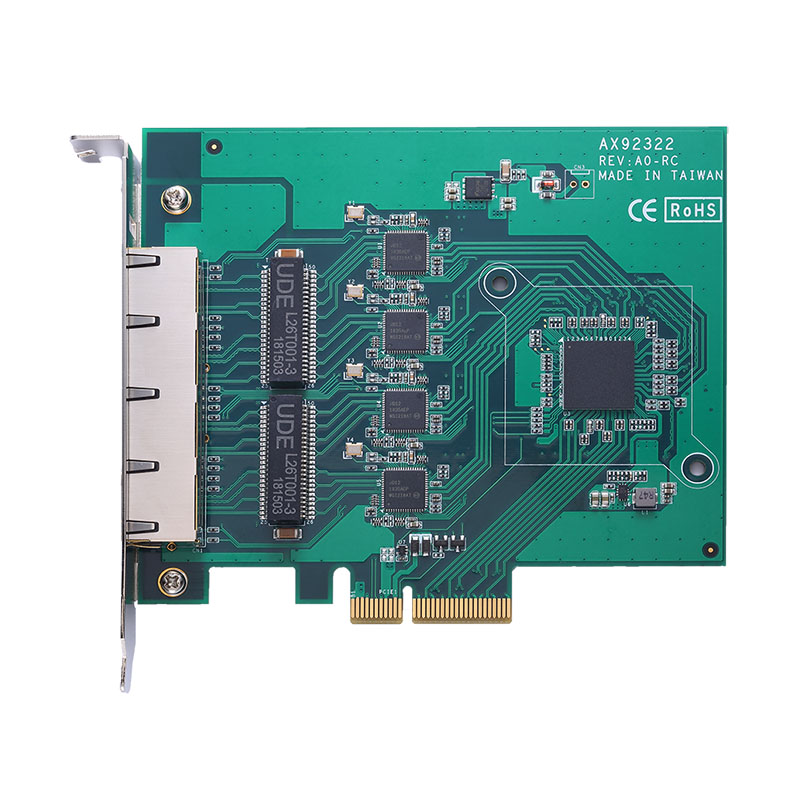

The AX92322 is a GigE compliant PCI Express card supporting two or four independent Gigabit Ethernet ports. It features PCI Express x4 interface and has four powerful independent Intel® Ethernet Controller i210-AT. The GigE frame grabber card supports 9.5KB Jumbo Frame and IEEE 1588 to enable faster and more accurate throughput of data. The AX92322 is built for machine vision and surveillance applications in industrial IoT field. This PCI Express frame grabber card is designed to help customers develop and deploy machine vision and surveillance applications which will greatly benefit through reduce the cost and simplify system integration. Moreover, the AX92322 has a wide operating temperature of 0˚C to 70°C, making it suitable to be used in most server environments. The advanced GigE frame grabber runs on Windows® 7, Windows® 10 and Linux.
