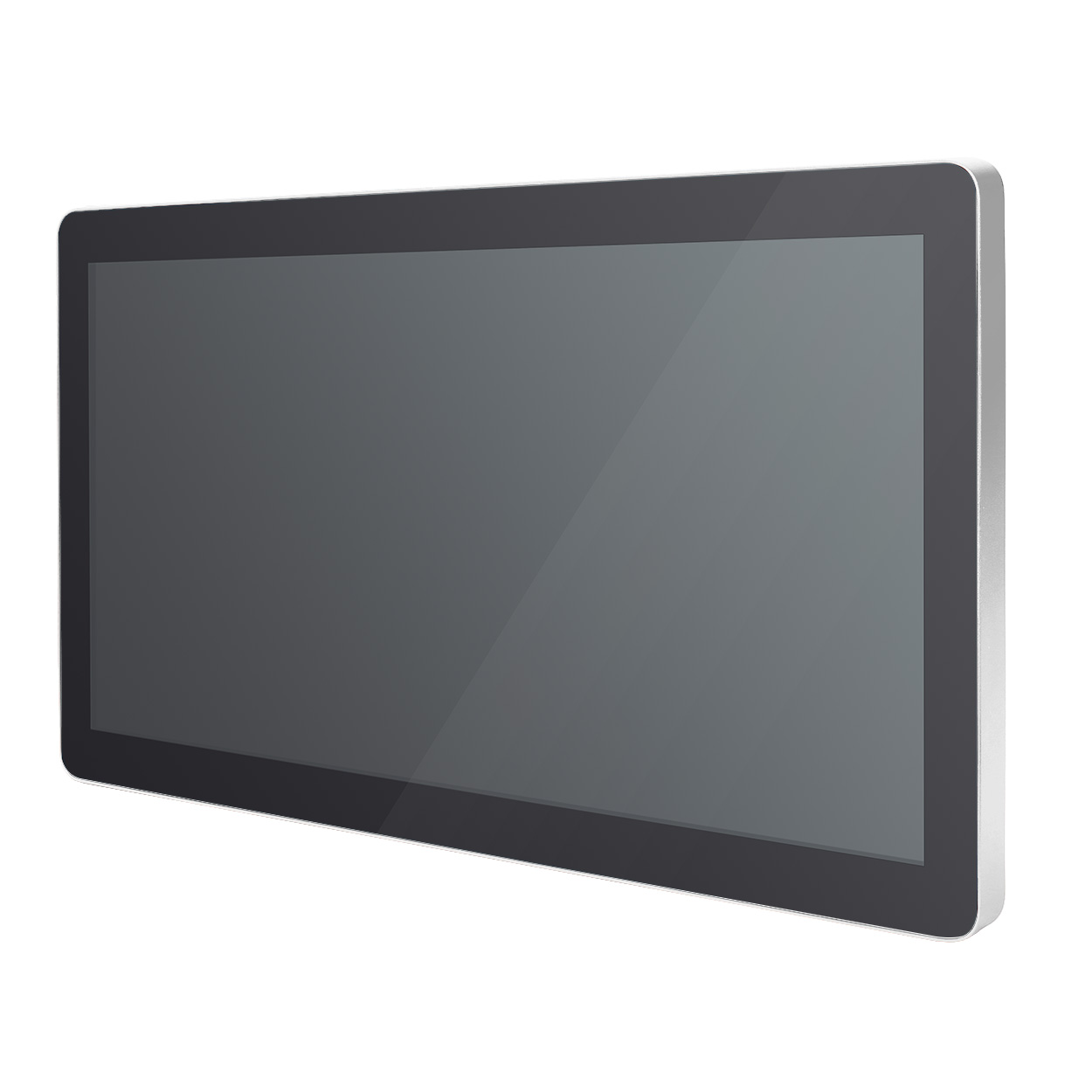

15.6" Modular Panel PC with Intel® Smart Display Module (SDM)

LCD Panel	15.6" FHD TFT LCD 300 nits 16:9 radio 1920 x 1080 pixels
SDM Module	SDM300-S: Intel® SDM Small (SDM-S, 60 x 100 mm) SDM500-L: Intel® SDM Large (SDM-L, 175 x 100 mm)
CPU	SDM300-S: Quad-core Intel® Pentium® N4200 1.1GHz processor or dual-core Intel® Celeron® N3350 1.1GHz processor SDM500-L: Intel® Celeron® 4305UE 2.0GHz processor or Intel® Core™ processor (optional)
Chipset	SoC integrated
System Memory	SDM300S: Onboard LPDDR4 2400 MHz 4GB (8GB optional) SDM500L: 2 x 260-pin DDR4-2400 SO-DIMM slot, up to 64GB

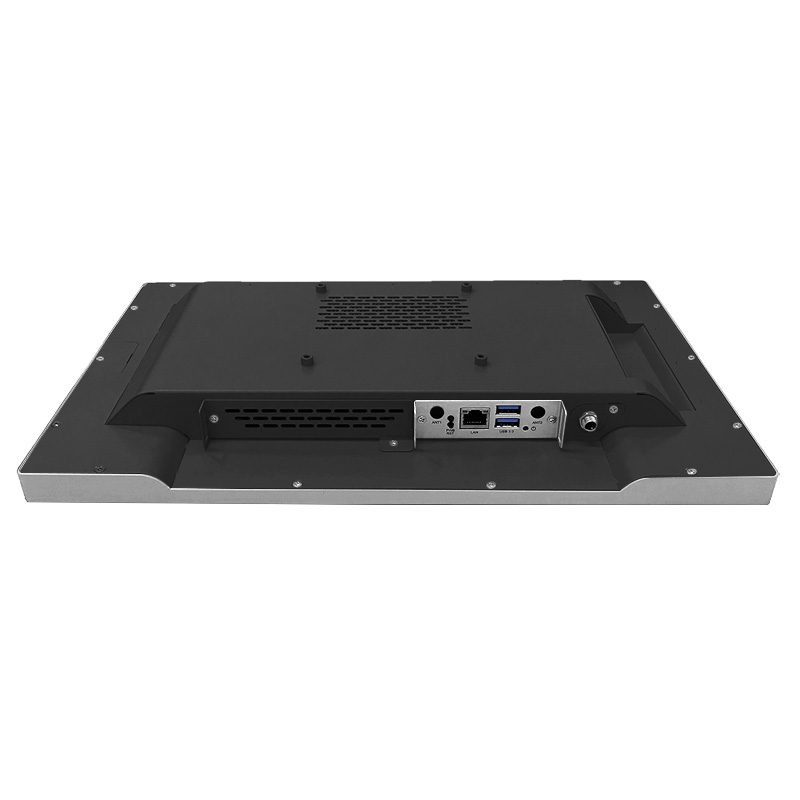

SDM-S I/O	1 x GbE LAN 2 x USB 3.0 Type A 2 x SMA antenna reserved hole

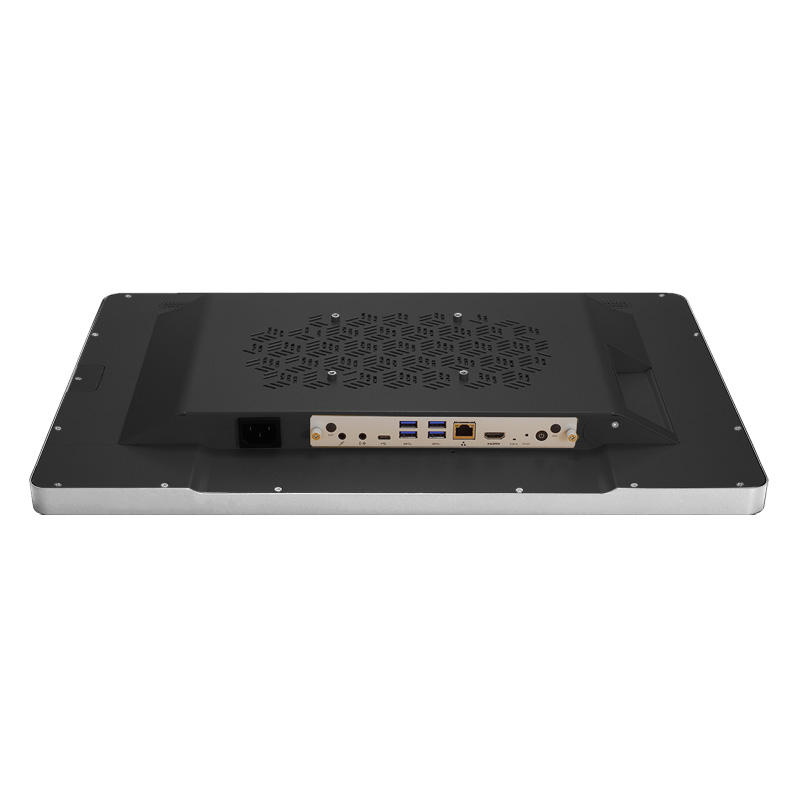

SDM-L I/O	1 x Power button with LED 1 x GbE LAN 4 x USB 3.0 Type A 1 x Audio output 1 x Micphone input

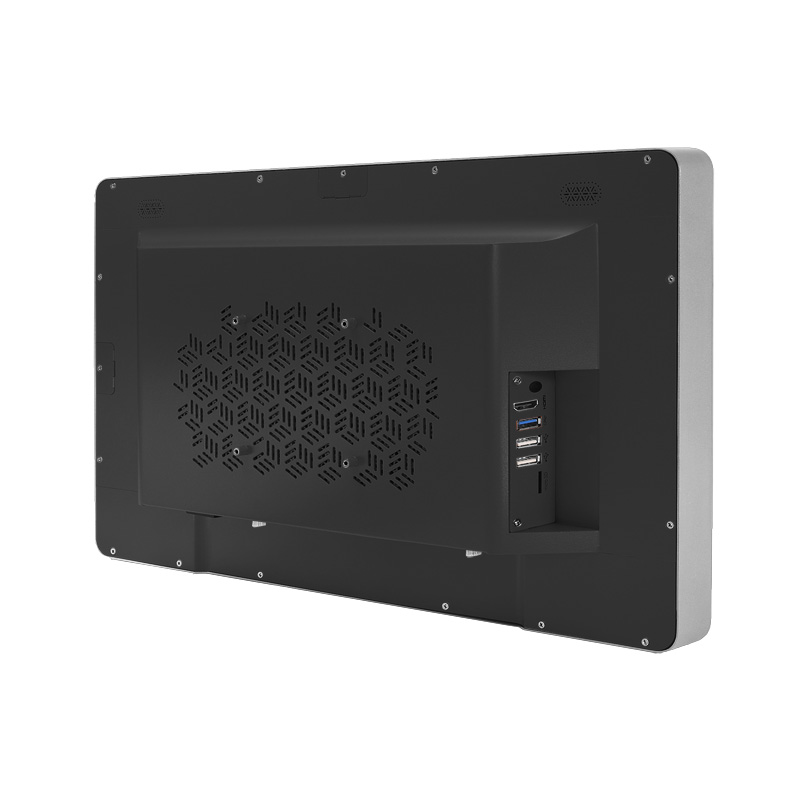

I/O	1 x HDMI 1 x USB 3.0 Type A 2 x USB 2.0 Type A 1 x microSD card slot (push-push type) 2 x 12 VDC-in barrel (screw-lock type) 1 x Power button with LED
Touchscreen	Projected capacitive multi-touch
Front Bezel	Metallic front bezel, IPx4 compliant
Expansion	SDM300-S:1 x M.2 Key E 2230 slot (for the Wi-Fi) SDM500-L: 1 x M.2 Key E 2230 slot (for the Wi-Fi)
Storage	SDM300-S: 1 x eMMC 64GB onboard SDM500-L: 1 x M.2 Key M 2242 slot 1 x M.2 Key B 2280 slot
Others	2 x S.P.L. 88dB, 1.5W, 4 ohm
Power Supply	84W (12V@7A) AC to DC power adapter
Power Consumption	Average 45W
Dimensions	386 x 40 x 241 mm (15.1” x 1.6” x 9.5”)
Weight (net/gross)	3.1kg (6.9lb)/5.6kg (12.4lb)
Operating Temperature	0°C to +40°C (+32°F to +104°F)
Operating Humidity	20% - 90%, non-condensing
Certications	CE, FCC Class A
