| CPU |
- Intel® Celeron® N3350 2C @1.1 GHz, 6W TDP
|
| Chipset |
|
| System Memory |
- 1 x DDR3L-1600 SO-DIMM, up to 8GB
|
| COM |
|
| USB |
|
| Ethernet |
- 2 x RJ-45 isolated GbE LAN (Realtek RTL8111HN for ICO110-N3350-AC; Realtek RTL8119I for ICO110-N3350-AW)
|
| PoE |
- Isolation voltage: 1.5 kV
|
| CANbus |
|
| Digital I/O |
|
| Analog Input |
|
| Display |
|
| Expansion |
- 1 x half-size Rev. 1.2 PCI Express Mini Card slot: mini mSATA
|
| Storage |
- 1 x mini mSATA (occupied 1 x PCI Express Mini Card slot)
|
| Others |
|
| Power |
- 1 x Terminal block, 9 to 36 VDC (typical: 12 to 24 VDC)
|
| Watchdog Timer |
- 255 levels, 1 to 255 sec.
|
| Construction |
- Extruded aluminum and heavy-duty steel, IP30
|
| Operating Temperature |
- ICO110-N3350-AC: 0°C to +50°C (+32°F to +122°F)
- ICO110-N3350-AW: -40°C to +70°C (-40°F to +158°F)
|
| Relative Humidity |
|
| Vibration |
- 2 Gms with storage (5 to 500Hz, X/Y/Z direction; random, operating)
|
Dimensions
(W x D x H) |
- 48 x 100 x 100 mm (1.89" x 3.94" x 3.94")
|
| Weight (net/gross) |
- 0.3 kg (0.67 lb)/0.45 kg (0.99 lb)
|
| Certifications |
- CE/FCC EN 55035 (Class A), FCC part 15 B (Class A)
|
| Software Support |
|
| EOS Support |
|
| Mounting |

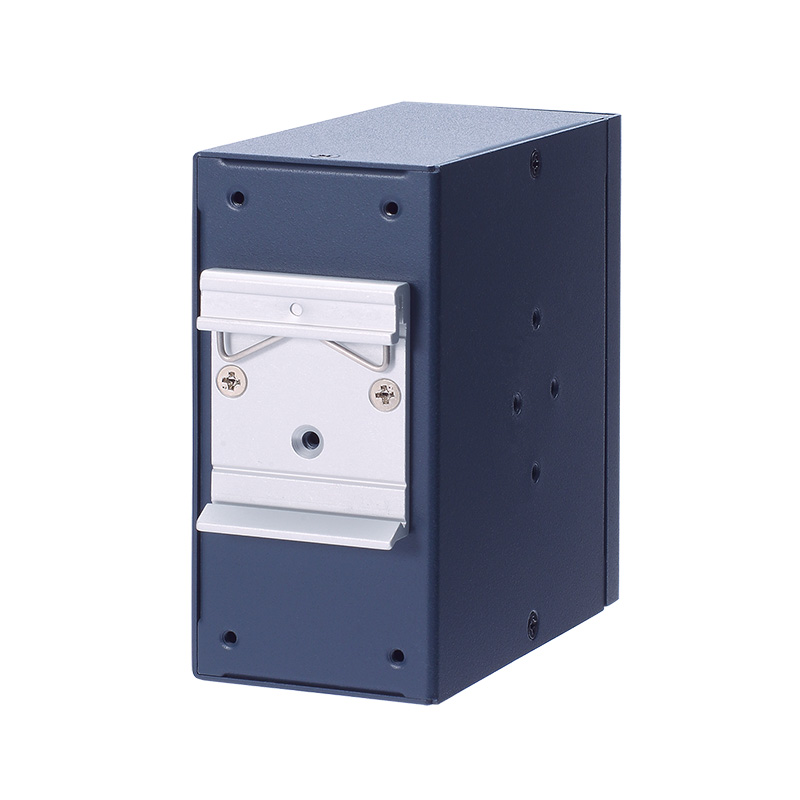

- DIN-rail
- Wall Mounting (optional)
|
