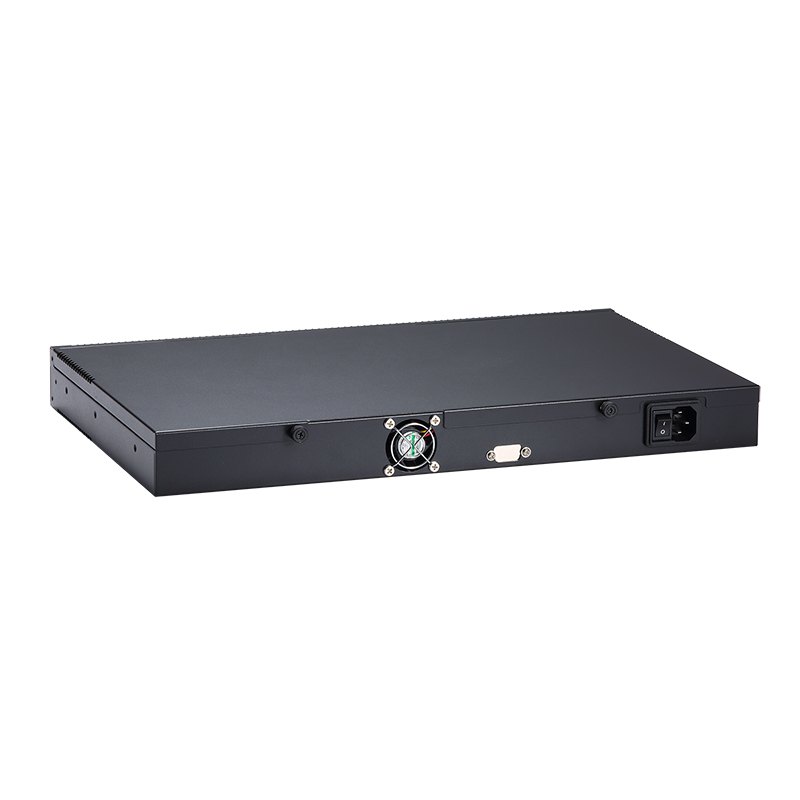

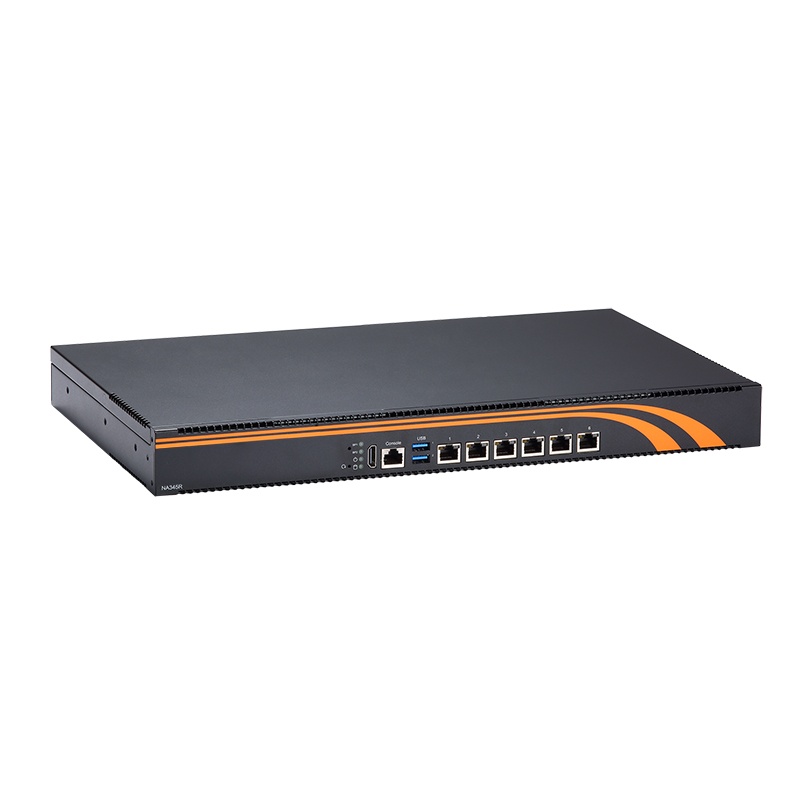

NA345R

1U Rackmount Network Appliance Platform with Intel® Celeron® N3350 or Atom™ x5-E3940 Processor and 6 LANs

產品階段：Available

加到產品比較表

詢問此產品

產品特色

Form Factor	1U rackmount
CPU	Intel® Celeron® N3350/J3455 processor (Apollo Lake)
Chipset	SoC integrated
System Memory	1 x DDR3L-1600 SO-DIMM, up to 8GB non-ECC memory
BIOS	AMI
Ethernet	6 x 10/100/1000 Mbps (Intel® I210)
LAN Bypass	LAN Bypass function through latch relay (one pair)
LAN Module	N/A
Storage	1 x 2.5" SATA3 HDD 1 x Full-size mSATA 1 x 3.5" SATA HDD (optional)
Expansion	N/A
I/O Interface	1 x Console (RJ-type) 2 x USB 3.0 6 x RJ-45 GbE 1 x HDMI
Power Supply	65 W open frame
LCM Module	Optional
Watchdog Timer	255 levels for system reset 7 levels for LAN Bypass
Operating Temperature	0°C to +45°C (+32°F to +113°F)
Dimensions (H x W x D)	44 x 430 x 250 mm (1.73" x 16.93" x 9.84")
Weight (net/gross)	7 kg (15.43 lb)/8 kg (17.64 lb)
OS	Linux
Certifications	CE/FCC Class B
Others	Onboard TPM 1.2 (optional)

NA345R-R6GI-N3350-US with 1 LBP (P/N-E26E345101)
1U rackmount network appliance with Intel® Celeron® N3350 (1.10GHz 2C 6W), 6 LAN, 1 LAN Bypass (LBP), without TPM
NA345R-R6GI-J3455-US with 1 LBP (P/N-E26E345106)
1U rackmount network appliance with Intel® Celeron® J3455 (2.30GHz 4C 10W), 6 LAN, and 1 LBP, without TPM
5916E552000E
DB9F-RJ-45 1.8M console cable for Cisco
59906000010E
Power cord YP-12/YC-12 (JP)
59903000000E
Power cord YP-22/YC-12 (EU)
59905000000E
Power cord YP-35/YC-12 (AU)
59904010000E
Power cord YP-61A/YC-12 (UK)

Date	Description	Version	Download File
2018/01/19	User's Manual	VA2	848 KB

Date	Description	Download File
2023/01/04	FCC Verification	39 KB
2023/01/04	UKCA Declaration of Conformity	65 KB
2023/01/04	CE EMC Verification	63 KB
2023/01/04	CE-Conformity Declaration	59 KB
2020/02/15	CE LVD Verification	270 KB
