| CPU |
- Intel® Pentium® processor N4200 or Celeron® processor N3350 onboard
|
| Chipset |
|
| System Memory |
- 1 x 204-pin DDR3L-1867 SO-DIMM, up to 8GB
|
| BIOS |
|
| COM |
- 1 x RS-232/422/485
- 1 x RS-232
|
| USB |
|
| Ethernet |
- 2 x 10/100/1000 Mbps (Intel® I210-AT)
|
| Display |
- 1 x DisplayPort++
- 1 x LVDS
|
| Digital I/O |
- 4-channel in/out programmable
|
| Audio |
|
| Storage |
- 1 x M.2 KEY B (SATA, USB 2.0, PCIe x2 optional) in 22 x 42 or 30 x 42
|
| Expansion |
- 1 x Half-size PCI Express Mini Card slot with mSATA supported
|
| Others |
|
| Battery |
|
| Power Input |
- 2 x 2-pin connector
- +12V DC-in only
- AT Auto Power On function supported
|
| Power Requirements |
- Pentium® N4200 @ 1.1 GHz, min. RMS: +12V @1.3A
- Celeron® N3350 @ 1.1 GHz, min. RMS: +12V @1.1A
|
| Watchdog Timer |
- 65536 levels, 0 to 65535 sec.
|
| Hardware Monitoring |
|
| Operating Temperature |
- -20°C to +60°C (-4°F to +140°F)
|
| Relative Humidity |
- 10% to 95% relative humidity, non-condensing
|
| Dimensions |
|
| Board Thickness |
|
| Certifications |
|
| Industrial Chassis |

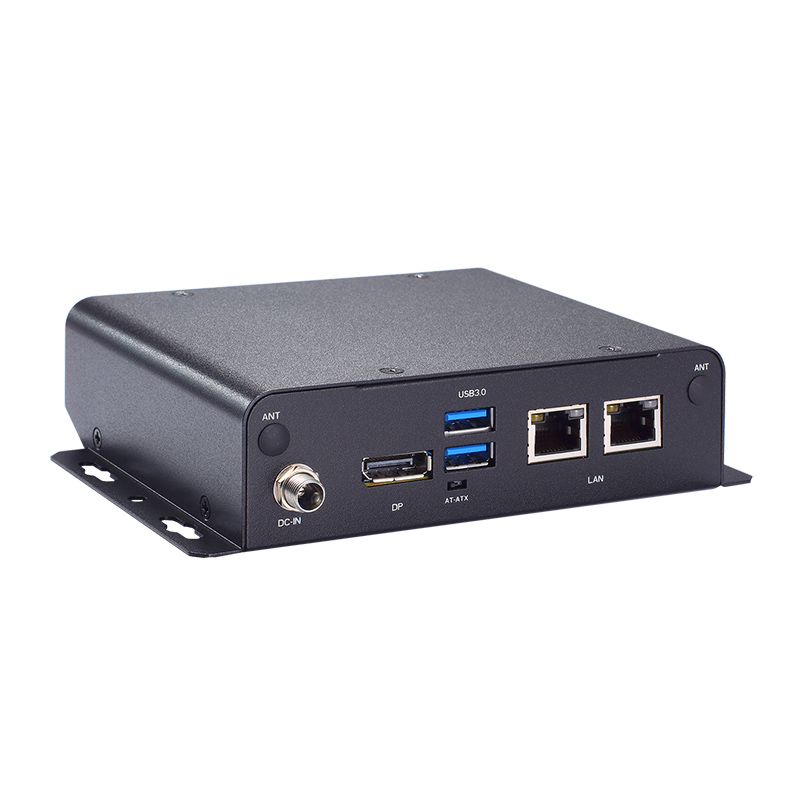

- APC203 (P/N-E27P203100): Embedded chassis with PICO318PGGA-N3350 (P/N-E38H318102), 8GB RAM, 64GB M.2 Key B card and 12V/60W adapter
- I/O: 2 x GbE LAN, 2 x USB 3.0, 1 x DisplayPort++, 1 x 12V DC Jack
- Dimensions (with wall mount ear): 152.5 mm (6") (W) x 107.5 mm (4.23”) (D) x 37.5mm (1.48") (H)
- Operating Temperature: -10°C to +50°C (+14°F to +122°F)
|
