產品特色
- 7th generation Intel® Core™ i7/i5/i3 and Celeron® processor
- 1 DDR4 SO-DIMM for up to 16GB of memory
- 2 GbE LAN
- M.2 Key E
- M.2 Key B
- Intel® AMT 11 supported
產品簡介

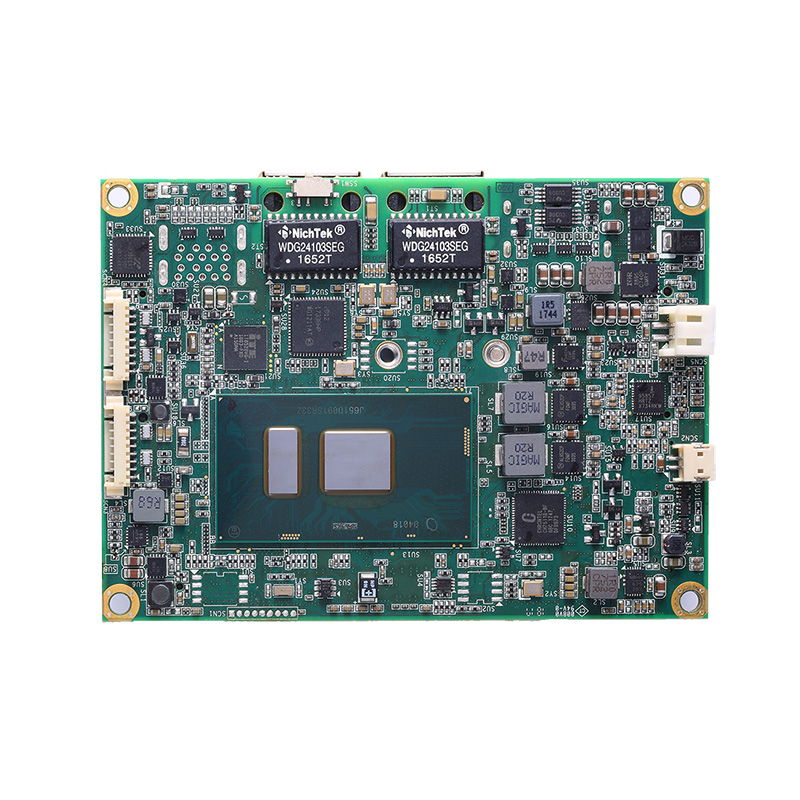

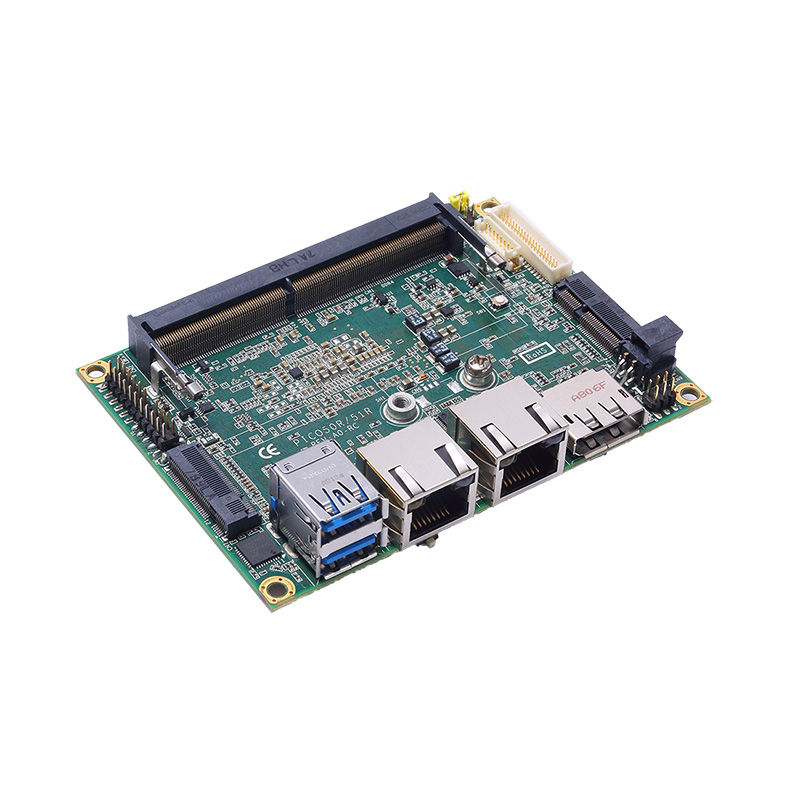

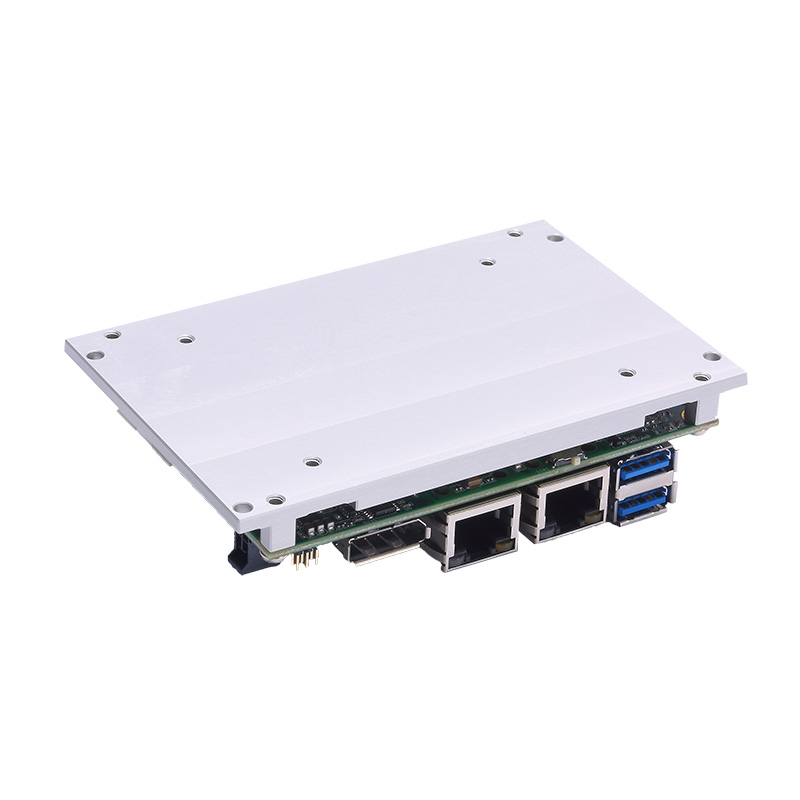

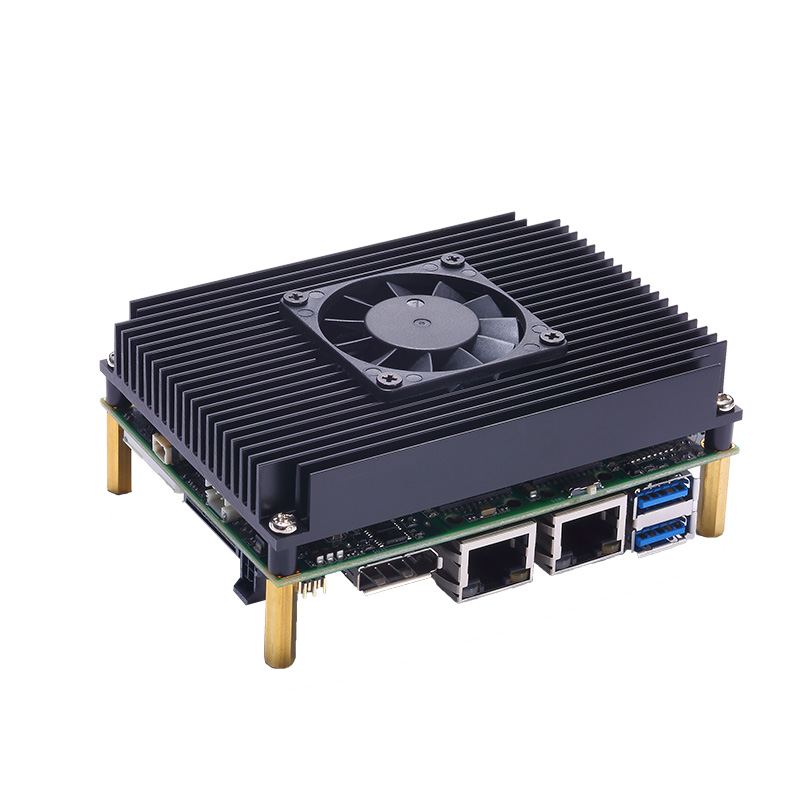

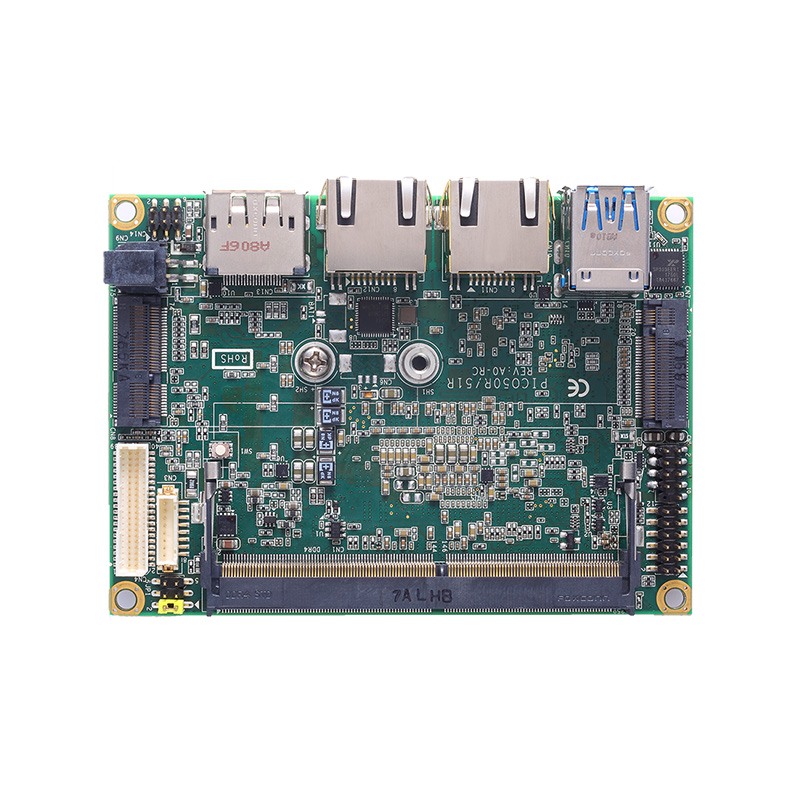

The PICO51R is powered by the 7th generation Intel® Core™ i7/i5/i3 or Celeron® processor (code name: Kaby Lake). With the onboard CPU attached to the rear side of the board, the PICO51R can aid the heat-extraction process to make fanless design possible and make system integration fast. The pico-ITX embedded board also provides practical expansion interfaces within its limited dimensions including one M.2 Key E slot for wireless modules and one M.2 Key B slot for storage cards. This powerful 2.5-inch Pico-ITX embedded motherboard is designed for minimum maintenance and maximum ruggedness. In addition to two USB 3.0 (USB 3.1 Gen1) ports in support of industrial cameras for machine vision applications, the PICO51R also comes with an M.2 Key E slot for wireless communication capabilities and two Gigabit Ethernet ports for mass data transmission or LAN port teaming functions. The Intel® Core™-based PICO51R supports one 260-pin DDR4-2133 SO-DIMM for up to 16GB of system memory. Moreover, the pico-ITX single board computer utilizes Intel® HD graphics engine to bring a true high definition visual experience with dual-display configurations through DisplayPort++ and 18/24-bit single/dual channel LVDS. In addition, this industrial motherboard can withstand a wide operating temperature range from -20°C to +60°C (-4°F to 140°F) for use in rugged and harsh environments.
