| I/O |

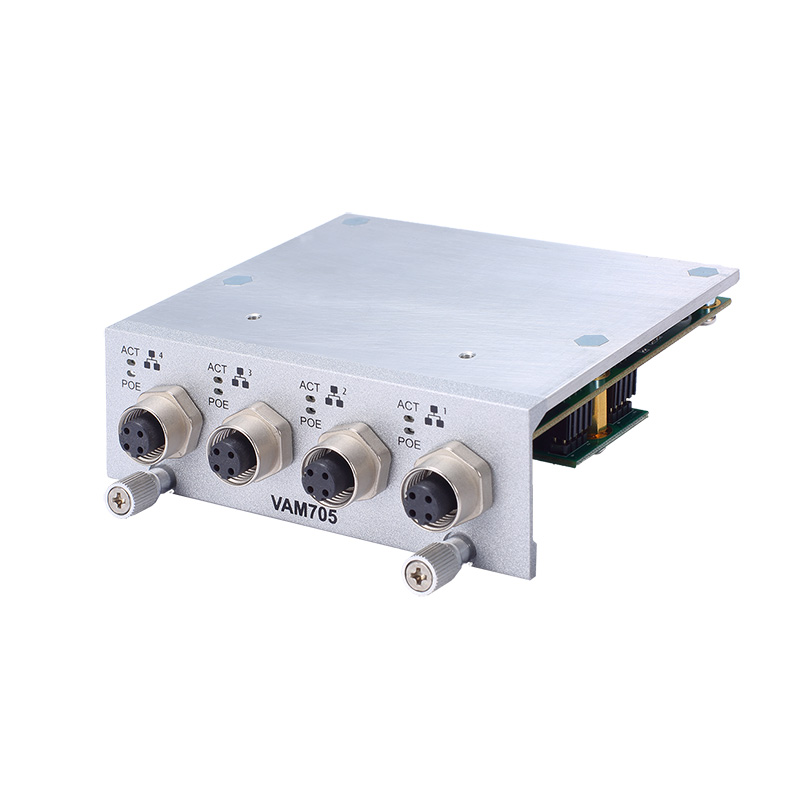

- 4 x M12 D-coded 10/100 Mbps LAN
- 4 x Manageable M12 output, up to 60W, supporting PoE and PoE+
- PoE (802.3af 15.4W/port), PoE+ (802.3at 30W/port)
- Manageability in total power budget and port enable/disable
|
| Expansion |
|
| Isolation Voltage |
|
| Operating Temperature |
- -40°C to +70°C (-40°F to +158°F) with the tBOX500 series & wide operating temperature peripheral
|
| Vibration |
- 3 Grms with the tBOX500 series (5 to 500Hz, X/Y/Z direction; random, operating)
|
| Certifications |
- CE, LVD, FCC and EN 50155 certified
|
