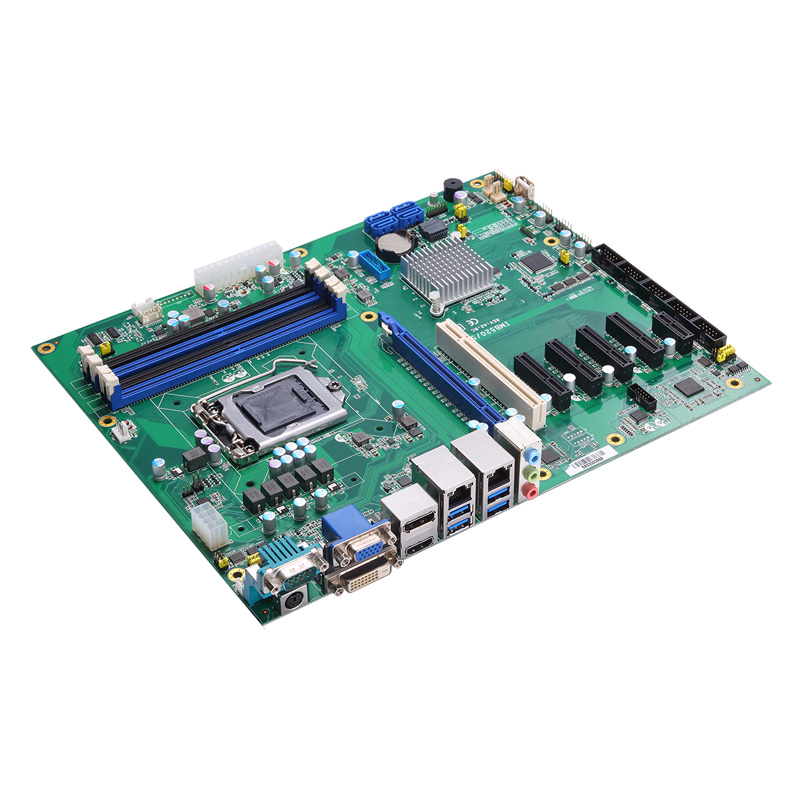

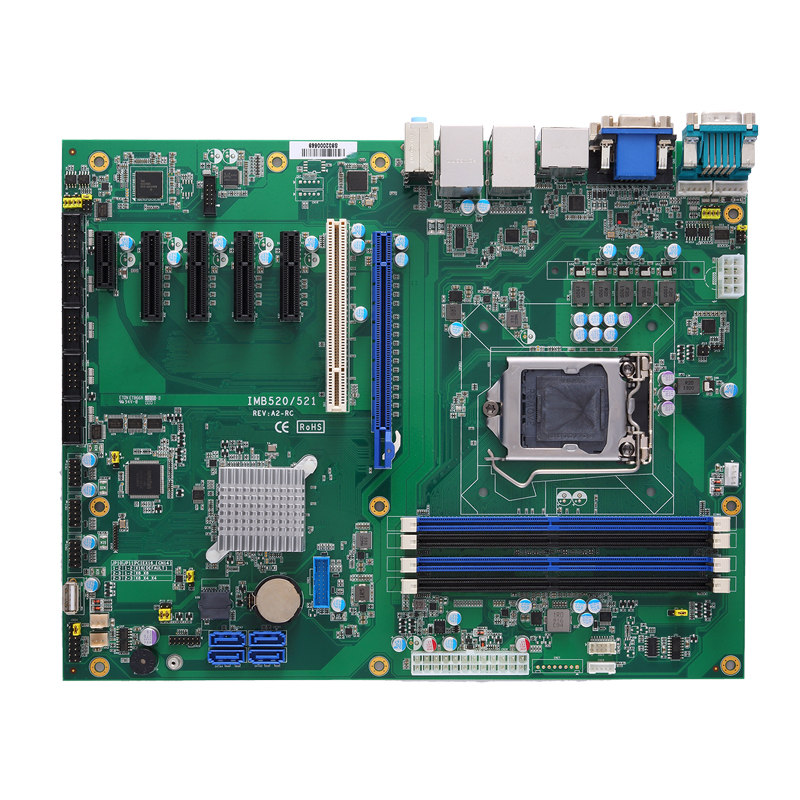

產品特色
- LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor (Coffee Lake Refresh)
- Four 288-pin DDR4-2666/2400 DIMM for up to 128GB of memory
- VGA, DisplayPort++, DVI-D and HDMI with triple-view supported
- 4 SATA-600 with RAID 0/1/5/10
- Two USB 3.2 Gen2x1 (10Gbps) and four USB 3.2 Gen1x1 (5Gbps)
- TPM 2.0 supported (optional)
產品簡介
The CEM700 offers scalable processor options from the 16-core Intel® Xeon® D-1577 processor to the 4-core Intel® Pentium® D1519 processor (codename: Broadwell DE). This COM Express Type 7 module comes with two 10GBASE-KR channels and supports two DDR4-2400 SO-DIMM slots for up to 32GB system memory. It delivers powerful server-class performance in a small form factor of 125 x 95 mm. Axiomtek's CEM700 is well-suited for integration into compute-intensive and space-constrained applications in need of high data and network throughputs, such as edge computing, microserver, data transmission device, and other networking fields. The Axiomtek's CEM700 incorporates two 10GBASE-KR interfaces and an NC-SI (Network Controller Sideband Interface) for remote management to fulfill server application demands. The Intel® Broadwell DE-based module has a wide operating temperature range from -20ºC to +70ºC (or optionally -40ºC to +85ºC) to fully serve the needs of diverse applications. To enable fast turnkey evaluation, Axiomtek also provides CEB94701, the COM Express type 7 baseboard to operate with CEM700. Customers can quickly emulate the functionality for software development and hardware verification.
