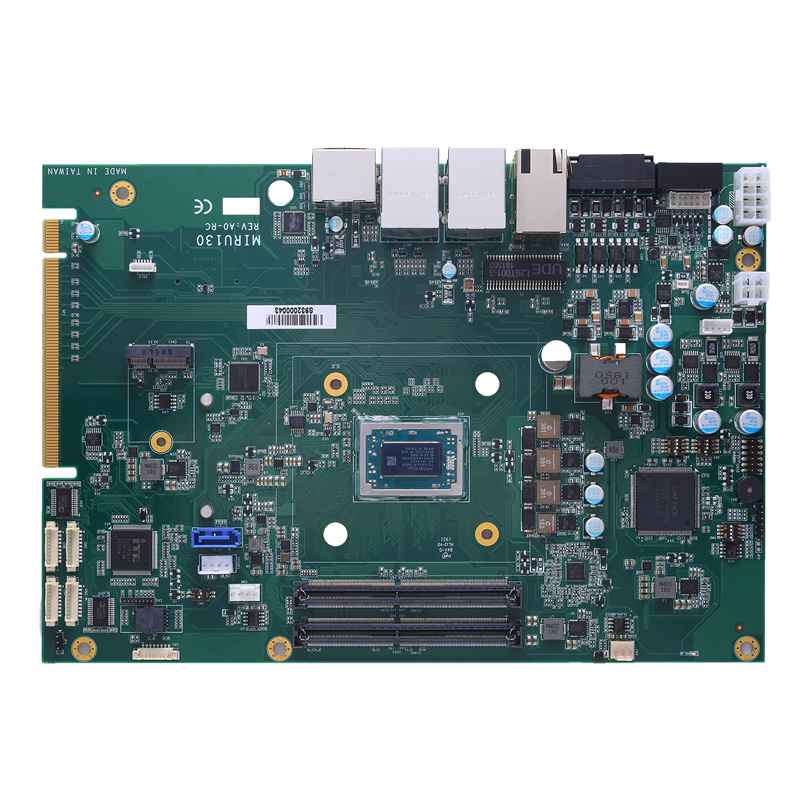

產品特色
- AMD Ryzen™ Embedded V1807B and V1605B APU
- 2 DDR4 SO-DIMM for up to 16GB of memory
- 2 GbE LAN and 2 IEEE 802.3at PoE GbE LAN
- 2-CH camera trigger outputs
- 2-CH LED lighting control
- 1-CH incremental quadrature encoder input
- 4 isolated DIO
產品簡介
The SDM300S is a signage computer module following the newest Intel® Smart Display Module Small (Intel® SDM-S) architecture. The SDM300S is powered by the onboard Intel® Pentium® processor N4200 and Celeron® processor N3350 (code name: Apollo Lake) with the Intel® HD Graphics 505 or 500 chipset. The sleekest all-in-one display module measures only 100 x 60mm (roughly the size of a credit card), which makes for a thinner display. The SDM300S can be easily connected to an SDM-compliant display via a high-speed PCIe edge connector - which supports 4K resolution displays and video capture and has built-in USB 3.0, HDMI 1.4, DisplayPort 1.2, Serial TX/RX and I2C signals. Nearly a third the size of Open Pluggable Specification (OPS), the design of the SDM300S omits housing so it is well suited for space-constricting applications.
