Features
- Simple operation with one connecting cable to PoE
- IP67-rated enclosure for harsh industrial environments
- Compatible with the GigE vision interface standard
- Plug-and-play installation on the SIM with pre-assembled cables
- Ideal for presence inspection, quality inspection, measuring, 2D positioning, the use of Sensor Integration Machine (SIM) with complex image processing tasks and multi-camera applications
產品簡介

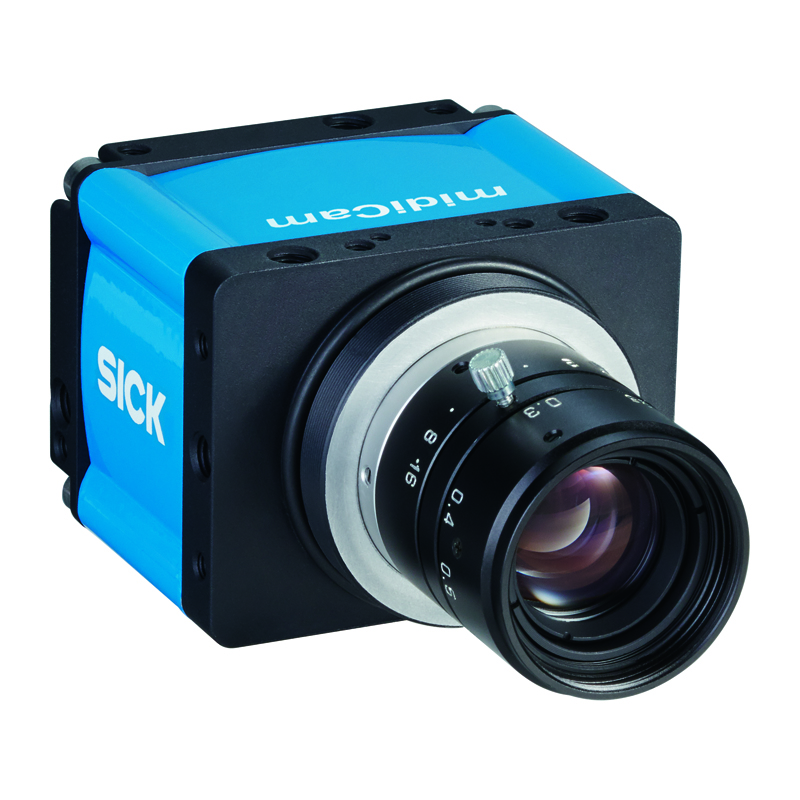

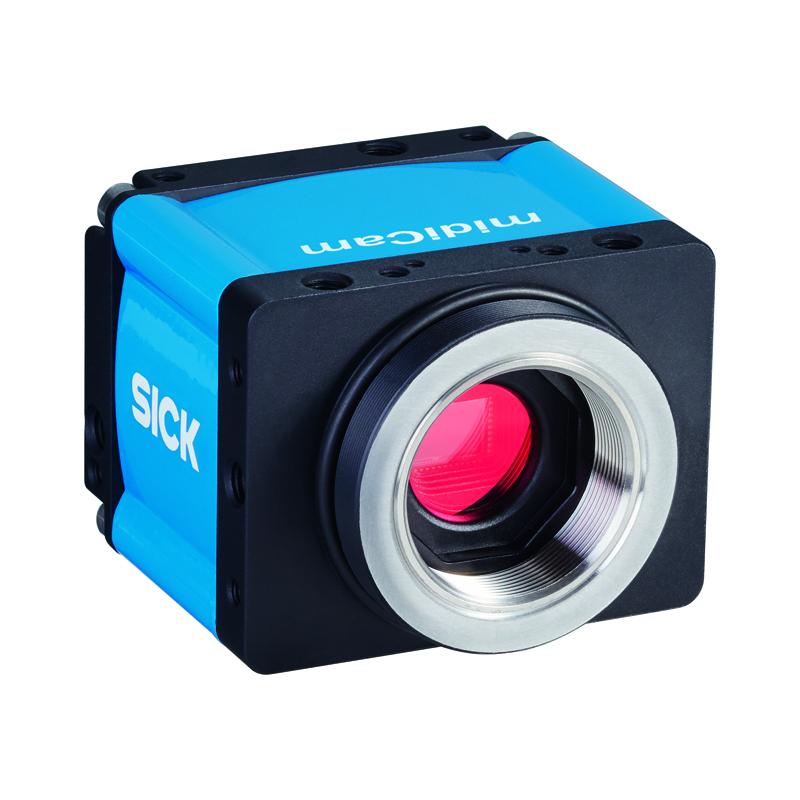

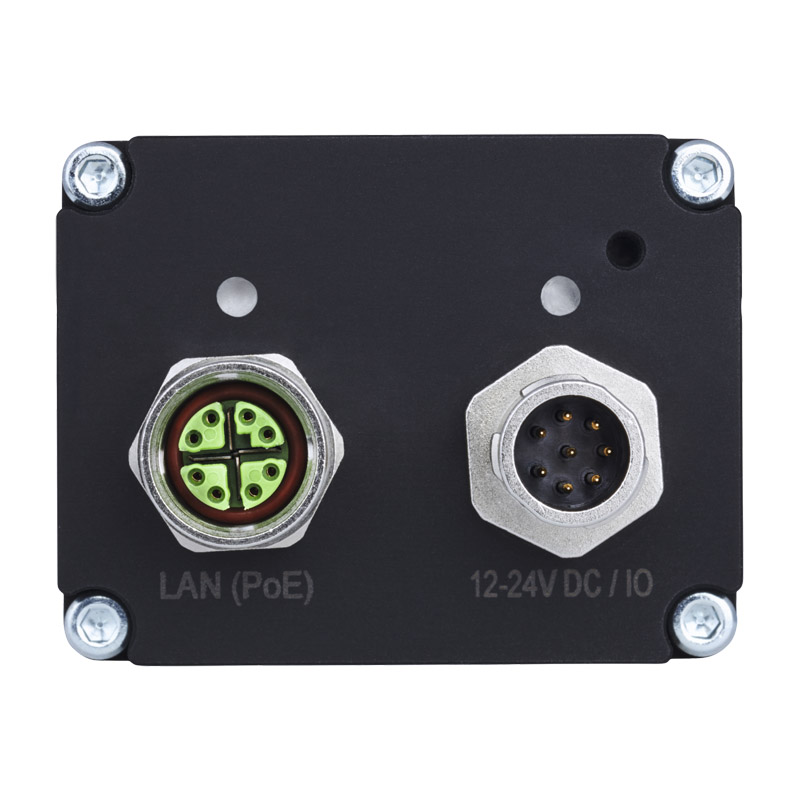

With an IP67 enclosure rating, the midiCam2 GigE vision-compatible camera family is ideally suited for usage in harsh industrial environments. This is why the midiCam2 has an M12 GigE interface – the standard for industrial image processing – as well as industry-grade M12 connections for the voltage supply and trigger signals. As an alternative, it is also possible to operate it with just one cable measuring up to 100 m in length using Power over Ethernet (PoE). The midiCam2 is available with 1, 3, 5 or 12 megapixel resolution in color and monochrome variants. CMOS image sensors use global shutter technology and enable multiple image sections (AOI). Image recording and transmission are decoupled in the internal 126 MB memory bank, meaning multi-camera applications are supported.
I2D612M-2MCB71
- Products by tasks: Presence inspection, quality inspection, measuring, 2D, positioning
- Internal lighting: To be ordered separately as accessories
- Lens: C-mount
- Sensor resolution: 4,096 px x 3,000 px (12.29 Mpixel)
- Sensor: CMOS monochrome
- Sensor used: Sony IMX304
I2D605M-2MCB71
- Products by tasks: Presence inspection, quality inspection, measuring, 2D, positioning
- Internal lighting: To be ordered separately as accessories
- Lens: C-mount
- Sensor resolution: 2,448 px x 2,048 px (5.01 Mpixel)
- Sensor: CMOS monochrome
- Sensor used: Sony IMX264
I2D603M-2MCB71
- Products by tasks: Presence inspection, quality inspection, measuring, 2D, positioning
- Internal lighting: To be ordered separately as accessories
- Lens: C-mount
- Sensor resolution: 2,048 px x 1,536 px (3.15 Mpixel)
- Sensor: CMOS monochrome
- Sensor used: Sony IMX265
For more product information, please refer to https://www.sick.com/tw/en/machine-vision/2d-machine-vision/midicam2/c/g541250
