| CPU |
- Intel® Core™ i7-1185G7E/i5-1145G7E & Intel® Celeron® 6305E processor (Tiger Lake U), 15W
|
| Chipset |
|
| System Memory |
- 2 x DDR4-3200 MT/s un-buffered SO-DIMM, up to 64GB
|
| BIOS |
|
| COM |
- 1 x RS-232/422/485 (default RS-232, BIOS selection)
- More COM ports available from extension I/O modules
|
| USB |
- 4 x USB 3.1 (10G) Type A
- 1 x Internal USB 2.0 for license key usage, up to 20mm
- More USB ports available from extension I/O modules
|
| Ethernet |
- 1 x 10/100/1000/2500 Mbps Ethernet (Intel® I225-LM)
- 2 x 10/100/1000 Mbps Ethernet (Intel® I210-AT)
- More LAN ports available from extension I/O modules
|
| Display |
- 2 x DisplayPort++ 1.2 4K; support resolution up to 4096 x 2160 @60HZ
|
| Digital I/O |
- Programmable 8-CH DIO via 10-pin terminal block, TTL type
- More DIO port available from extension I/O modules
|
| Audio |
|
| Storage |
- 1 x 2.5" HDD/SSD bay (7/9.5 mm height)
- 1 x M.2 Key B+M 2280 socket (SATA interface) for SSD
|
| Expansion |
- 1 x M.2 Key E 2230 socket
- 1 x SIM slot
- 1 x Full-size PCI Express Mini Card slot (USB & PCIe interface)

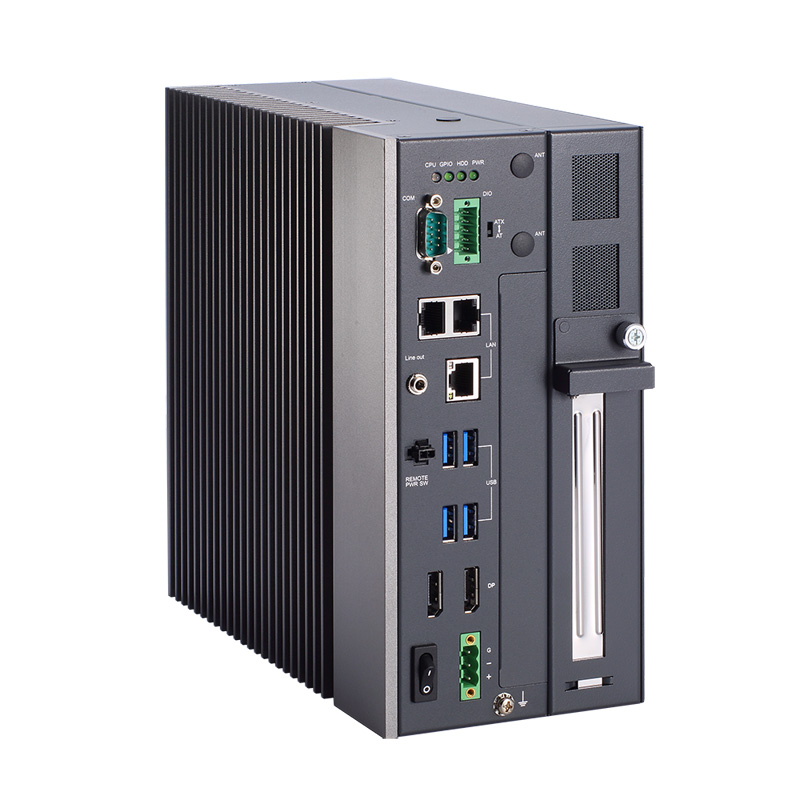

- 1 x PCIe x4 slot
|
| Others |
- 1 x Switch for power on/off w/LED (ATX)
- 1 x Remote switch
- 1 x 3-pin terminal block
- 1 x AT/ATX selectable switch
|
| Power |
- Type: ATX/AT
- Input: 24 VDC (uMin=19V/uMax=30V)
|
| Construction |
- Aluminum extrusion heavy-duty cold-rolled steel
|
| Operating Temperature |
- -20°C to +50°C (-4°F to +122°F) with W.T. SSD
|
| Relative Humidity |
- 10% to 95%, non-condensing
|
Dimensions
(W x H x D) |
- 69.5 x 225 x 230 mm (2.73" x 8.85" x 9")
|
| Weight (net/gross) |
|
| Software Support |
|
| EOS Support |
- Win 10, Win 11, Win 10 IoT, Win 11 IoT, Linux OS
|
| Certifications |
- CE (EN 61000-6-4/EN 61000-6-2)
- FCC
|
