| AI Accelerator |

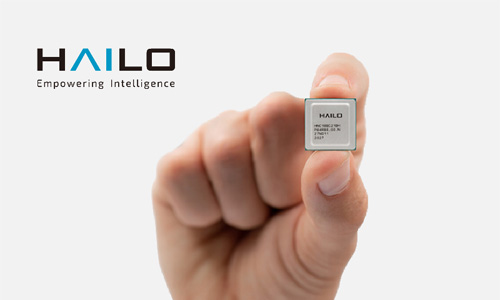

- Hailo-8™ SoC, up to 26 TOPS
|
| CPU |
- Intel® Celeron® processor J6413
|
| GPU |
|
| Chipset |
|
| System Memory |
- 1 x DDR4 SO-DIMM slot, up to 32GB
|
| COM |
|

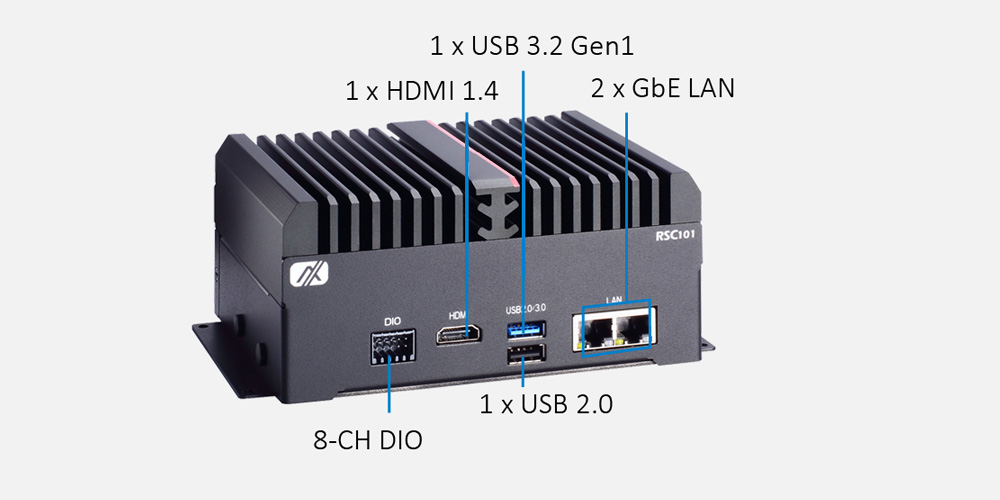

| USB |
- 1 x USB 3.2 Gen1
- 1 x USB 2.0
|
| Ethernet/PoE |
- 2 x 10/100/1000 Mbps Ethernet
|
| Display |
- 1 x HDMI 1.4 with 4K2K supported
|
| Digital I/O |
- 1 x 8-CH DI/DO (programmable)
|
| Audio |
|
| Storage |
- 1 x M.2 Key B 2242 SSD slot (SATA3)
|
| Expansion |
- 1 x M.2 Key E 2230 for Wi-Fi/Bluetooth
- 1 x M.2 Key B 3052 for 5G
- 1 x SIM slot
|
| Others |

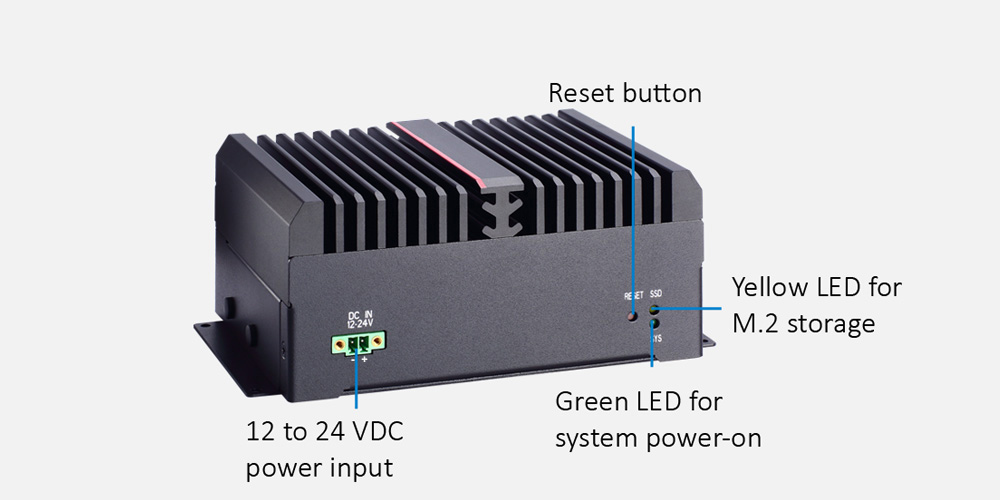

- 1 x Reset button
- 4 x SMA-type antenna connector
|
| Power Supply |
|
| Watchdog Timer |
- 255 levels, 1 to 255 sec.
|
| Construction |
- Aluminum extrusion and heavy-duty steel, IP40
|
| Operating Temperature |
- -10°C to +70°C (14°F to +158°F)
|
| Relative Humidity |
- 10% - 95%, non-condensing
|
| Vibration |
- 3.5 Grms (5 to 500Hz, X, Y, Z directions)
|
| Dimensions (W x D x H) |
- 150.0 x 111.0 x 71.7 mm (5.91" x 4.37" x 2.82")
|
| Weight (net/gross) |
- 1.5 kg (3.31 lb)/ 1.9 kg (4.19 lb)
|
| Certifications |
|
| EOS Support |
|
| Mounting |
|
