- Dual 3rd gen Intel® Xeon® Scalable processors (Ice Lake-SP)
- 16 288-pin DDR4-3200 RDIMM for up to 1TB of memory
- 4 PCIe x16 and 2 PCIe x8
- Supports 2 M.2 Key M slots for NVMe with RAID 0 & 1
- Supports TPM 2.0 module (optional)
- Two 10GbE ports
- IPMI (optional)

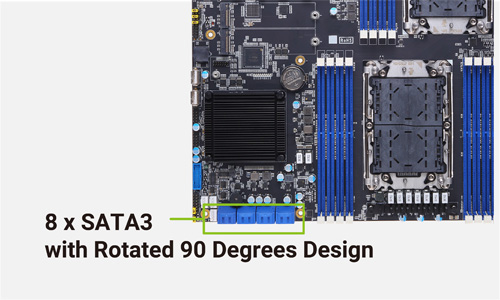

SATA3: Rotated 90 Degrees Design
Eight SATA-600 ports come with rotated 90 degrees design which enable more space for add-on-cards. It is also integrated RAID 0/1/5/10 are available for reliable data storage and protection.

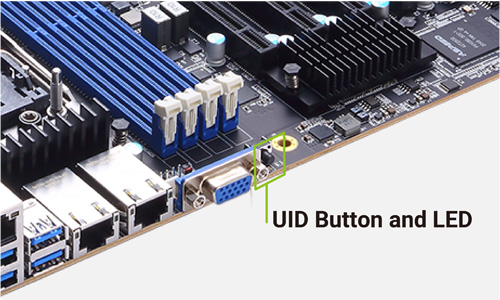

Quick to Locate Your Server
The UID button and LED can quickly locate a particular server when it is deployed in a dense rack with other equipment.

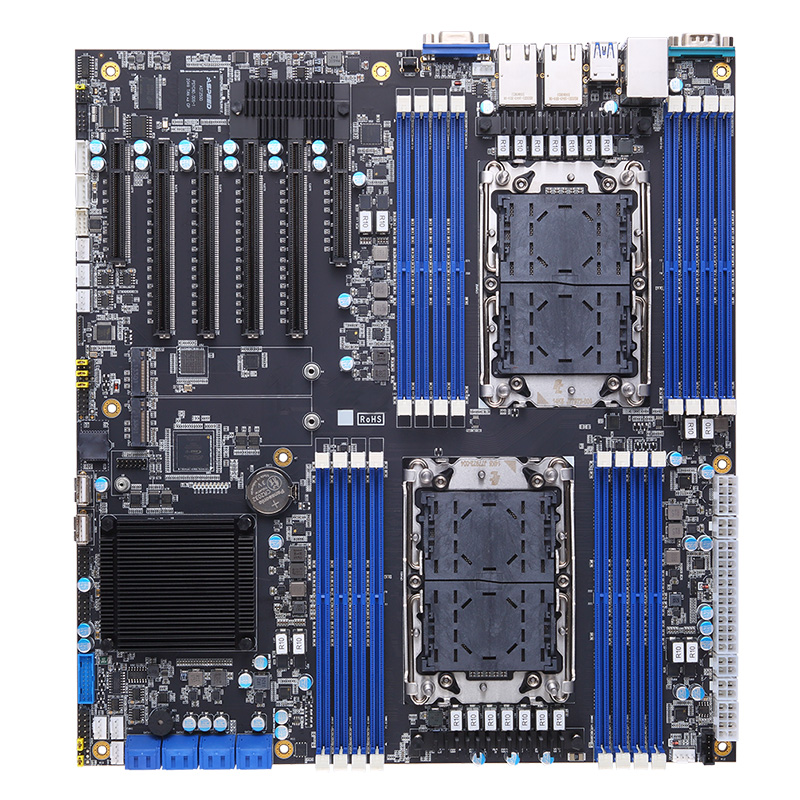

Server Grade EATX Motherboard for AIoT

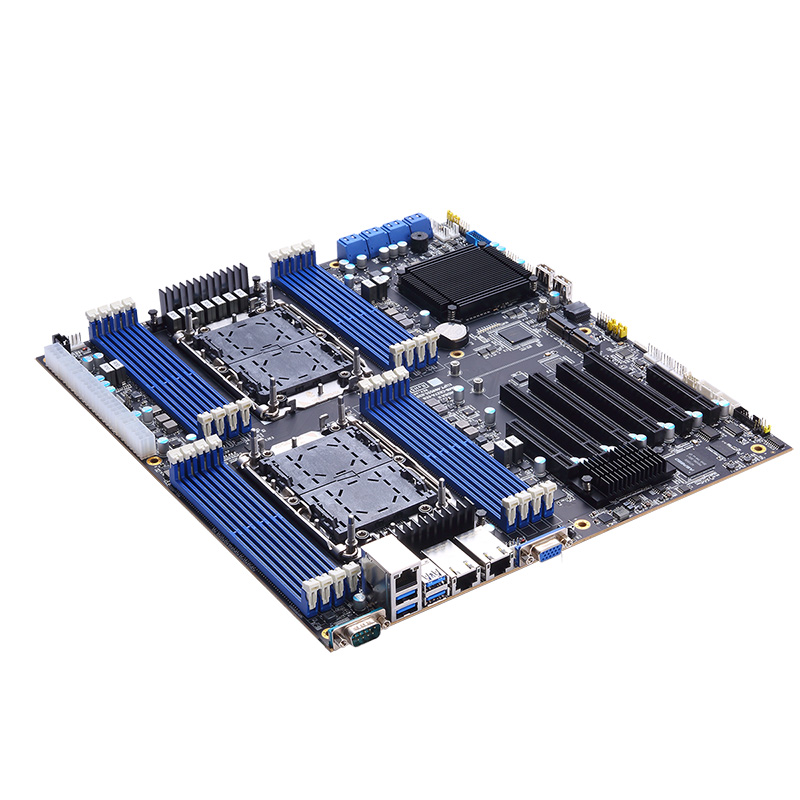

The IMB760 is a server-grade extended ATX motherboard (330mm x 305mm) powered by the dual LGA4189 socket 3rd Gen Intel® Xeon® scalable processors (code name: Ice Lake-SP) with the Intel® C621A/C627A chipset. It comes with an effective load balancing between two CPUs and multiple accelerator cards to stabilize computation loads and maximize computing power. Featuring optimized performance, more PCI Express Card slots and high-density memory expansion, this EATX server motherboard enables high-level computing, AI workload, and deep learning for the data-fueled future.
The IMB760 comes with an effective load balancing between dual 3rd Gen Intel® Xeon® scalable processors and multiple accelerator cards to stabilize computation loads and maximize computing power.

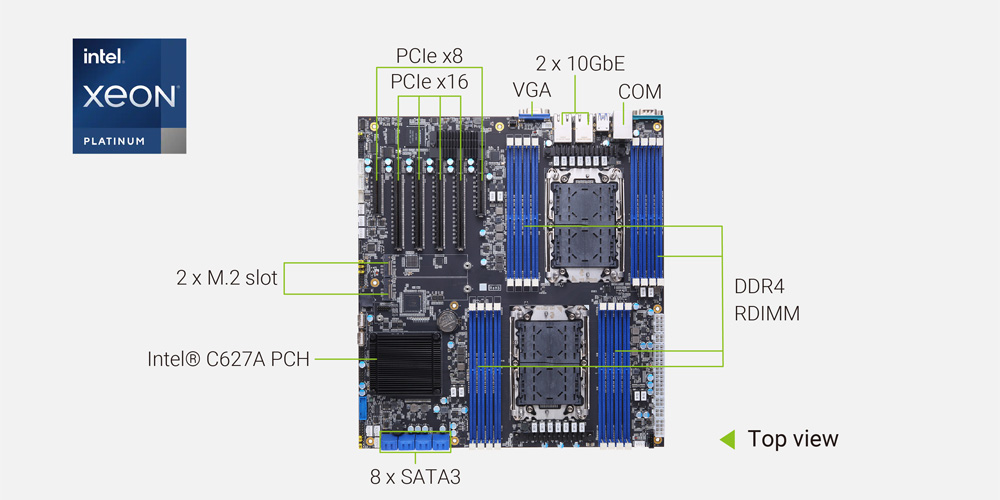

It offers four PCIe x16 slots, two PCIe x8 slots and two M.2 Key M 2280 interfaces with PCIe x4 signal, supporting GPU cards, capture cards, RAID cards, NVMe storage, and more.
The EATX motherboard is equipped with sixteen DDR4-3200 RDIMM sockets with a memory capacity of up to 1TB. Eight SATA-600 ports with integrated RAID 0/1/5/10 are also available for reliable data storage.
