| CPU |
- Intel® Celeron® N3350 2C @1.1 GHz
- TDP: 6W
|
| Chipset |
|
| System Memory |
- 1 x DDR3L-1600 SO-DIMM, up to 8GB
|
| COM |
|
| USB |
|
| Ethernet |
- 2 x RJ-45 GbE LAN (Intel® I210-IT) with an isolation voltage of 1.5 kV
|
| PoE |
|
| CANbus |
- 1 x CAN 2.0 A/B, 1 Mbps bitrate with SocketCAN & J1939 supported
|
| Digital I/O |
- 1 x DIO (8-bit programmable DIO)
|
| Analog Input |
|
| Display |
|
| Expansion |
- 1 x Full-size Rev. 1.2 PCI Express Mini Card slot with PCIe/USB signal (with SIM socket)
- 1 x Half-size Rev. 1.2 PCI Express Mini Card slot with mSATA/USB/PCIe signal
|
| Storage |
- 1 x mSATA (occupied 1 x PCI Express Mini Card slot)
- eMMC (optional)
|
| Others |

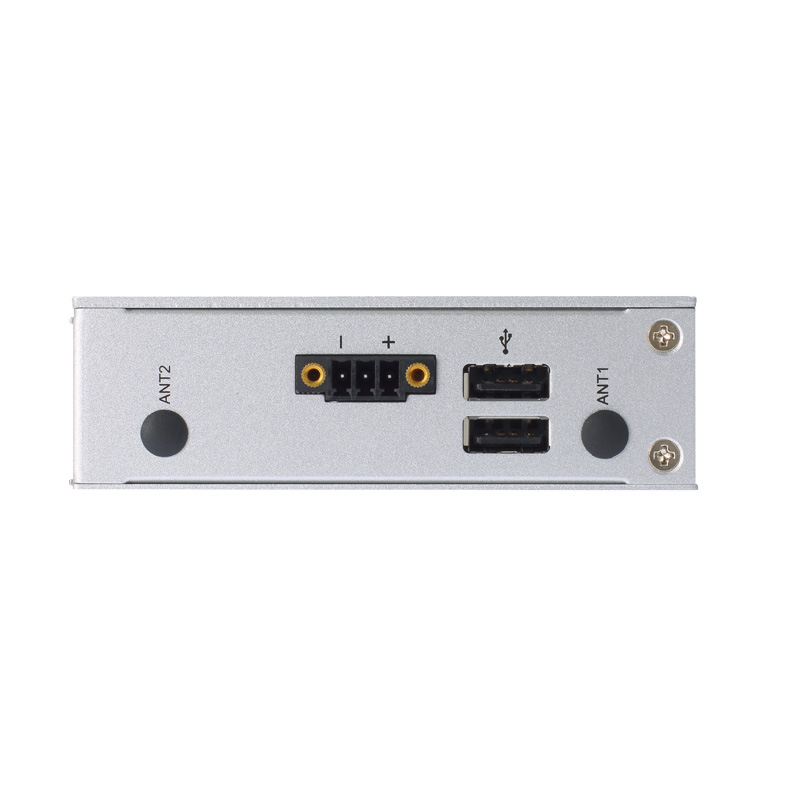

- 2 x Antenna opening
- TPM 2.0
|

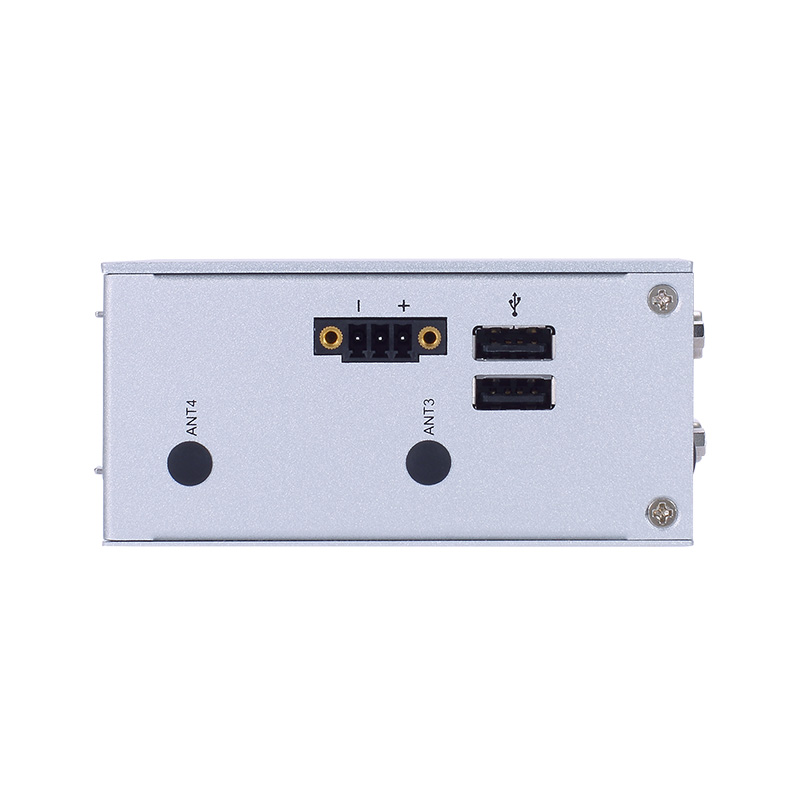

| Power |
- 1 x Terminal block, 9 to 36 VDC (typical: 12-24 VDC)
|
| Watchdog Timer |
- 255 levels, 1 to 255 sec.
|
| Construction |
- Extruded aluminum and heavy-duty steel, IP30
|
| Operating Temperature |
- -40°C to +70°C (-40°F to +158°F) with W.T. peripheral
|
| Relative Humidity |
|
| Vibration |
- 2 Gms with storage (5 to 500Hz, X/Y/Z direction; random, operating)
|
Dimensions
(W x D x H) |
- 31 x 100 x 125 mm (1.22" x 3.93" x 4.92")

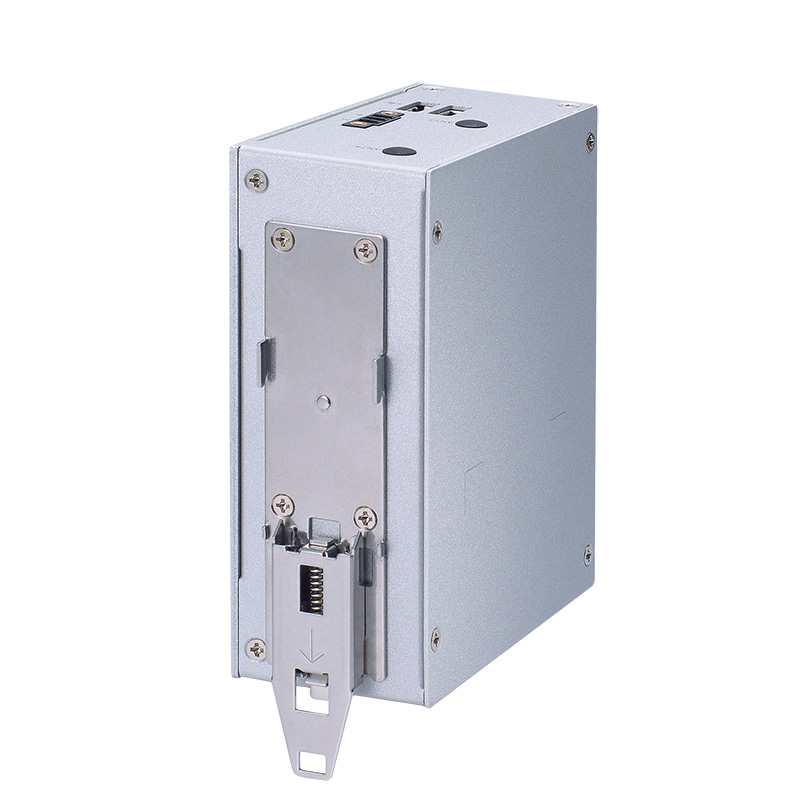

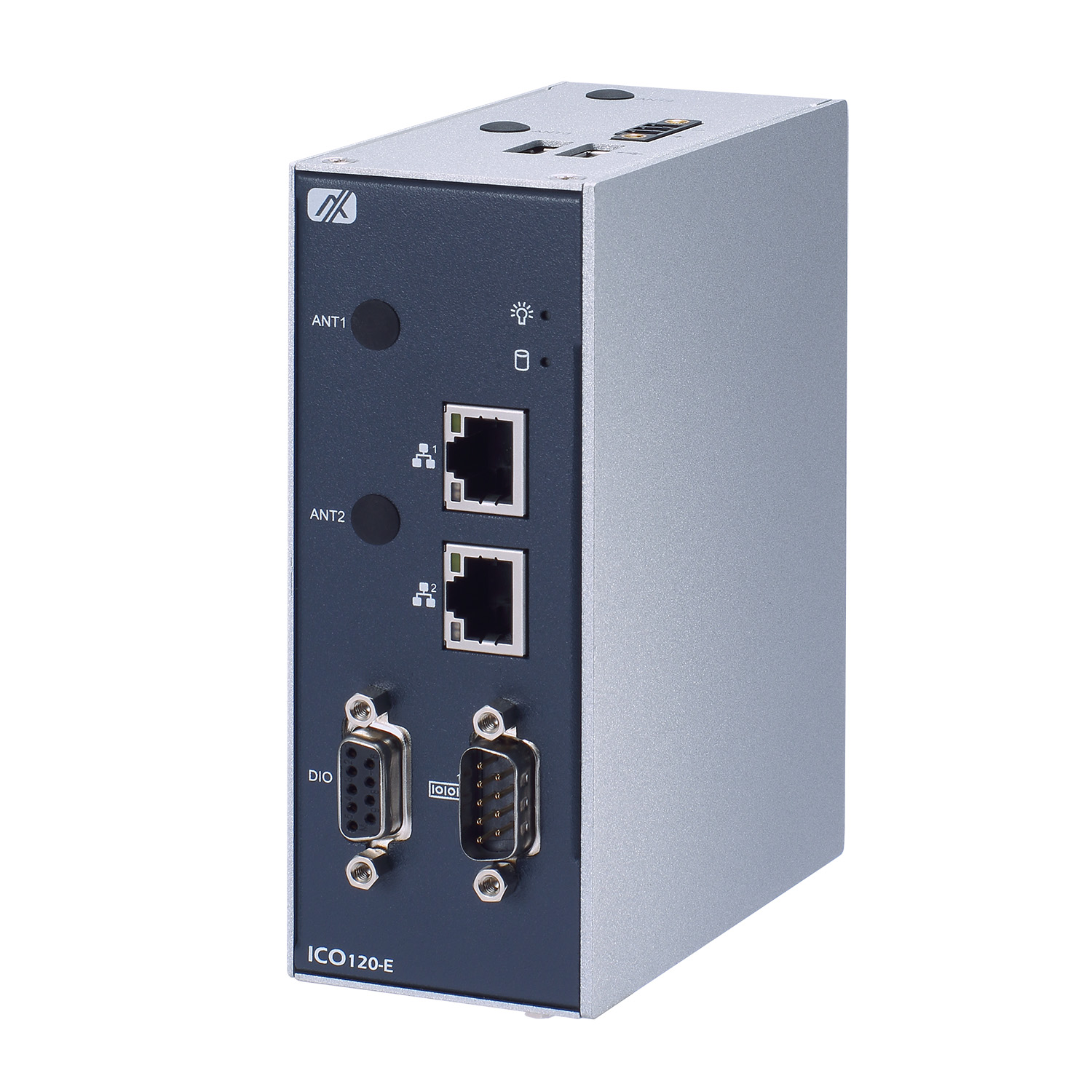

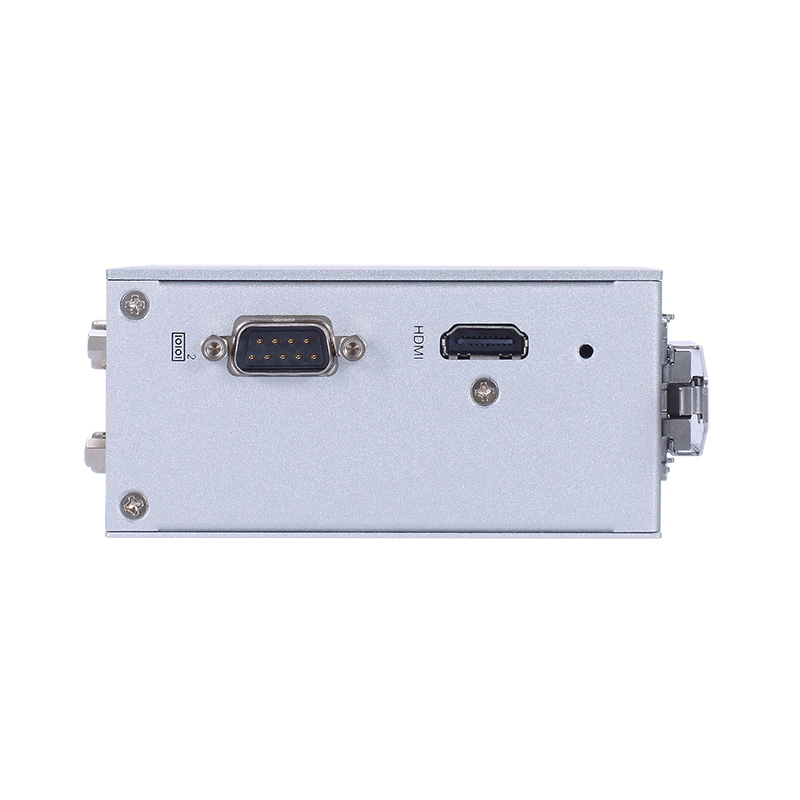

- ICO120-E3350-F: 48 x 100 x 125 mm (1.89" x 3.93" x 4.92")
|
| Weight (net/gross) |
- 0.3 kg (0.67 lb)/0.45 kg (0.99 lb)
- ICO120-E3350-F: 0.4 kg (0.88 lb)/0.5 kg (1.10 lb)
|
| Certifications |
- CE (Class A), FCC (Class A), UL
- EN 55032 (Class A), EN 55035
- FCC part 15 B (Class A)
|
| EOS Support |
|
| Software Support |
|
| Mounting |
|
