CPU |
- i.MX 6, Cortex-A9 RISC CPU, 800MHz
|
Chipset |
|
System Memory |
|
COM |
|
USB |
|
Ethernet |
- 1 x isolated 10/100/1000 Mbps
- 1 x isolated 10/100 Mbps
|
PoE |
|
CANbus |
- 2 CAN 2.0 B (Phoenix connector, non-isolation)
|

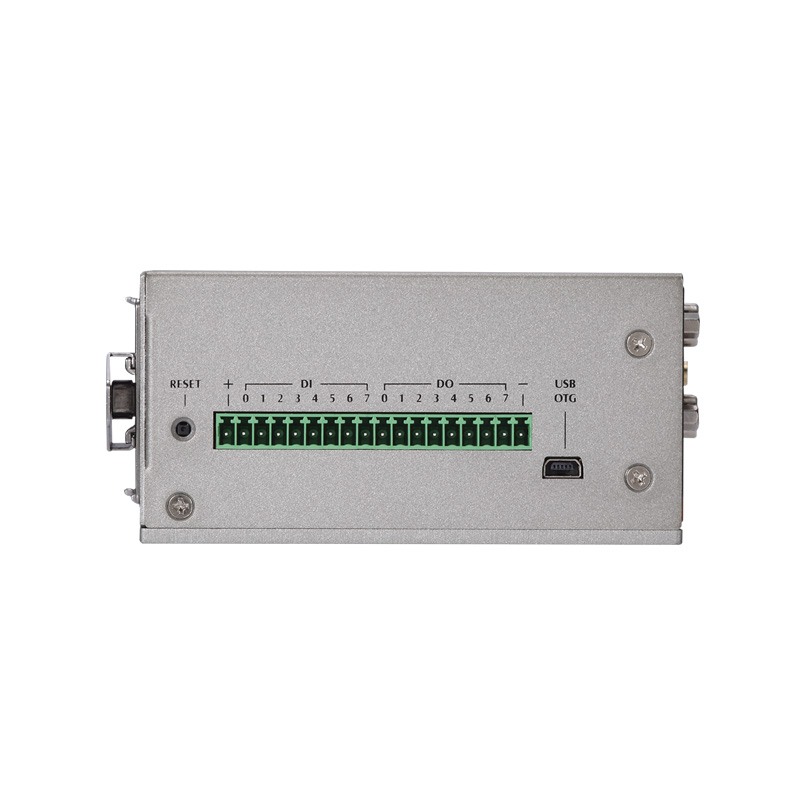

Digital I/O |
- 1 x isolated DIO (8-IN/ 8-OUT )
|
Analog Input |
|
Display |
- 1 x HDMI (Support screw lock)
|
Expansion |
- 1 x PCI Express Mini Card socket (supports USB interface) with 1 x SIM socket by outside
- access and is easy plug/pull.
- 1 x PCI Express Mini card socket (supports USB & PCIe interface) with 1 x SIM socket by inside
|
Storage |
- 1 x eMMC 8 GB onboard (for boot disk)
- 1 x SDHC Card (easy-to-access, for store only)
|
Others |
|
Power |
|
Watchdog Timer |
|
Construction |
- Extruded aluminum and heavy-duty steel, IP30
|
Operating Temperature |
- -40°C to +70°C (-40°F to +158°F)
|
Relative Humidity |
|
Vibration |
- 5G @ 10-150Hz, amplitude 0.35ms
|
Dimensions (W x D x H) |
- 55 x 110 x 155 mm (2.16" x 4.33" x 6.10")
|
Weight (net/gross) |
- 0.9 kg (2 lb)/1.3kg (2.87 lb)
|
Certifications |
- FCC Part 18
- Heavy Industrial CE
|
EOS Support |
- OS: Yocto 3.3 (Hardknott)
- Kernel: 5.10.72
|
Mounting |
|
