產品特色
- Intel® Smart Display Module (Intel® SDM) specification
- 8th gen Intel® Core™ i7/i5/i3 or Intel® Celeron® processor (Whiskey Lake-U)
- 2 DDR4-2400 SO-DIMM for up to 32G of memory
- M.2 Key E slot
- M.2 Key M slot
- M.2 Key B slot
- One HDMI, four USB 3.0, and LAN
- Supports Intel® AMT 12
產品簡介

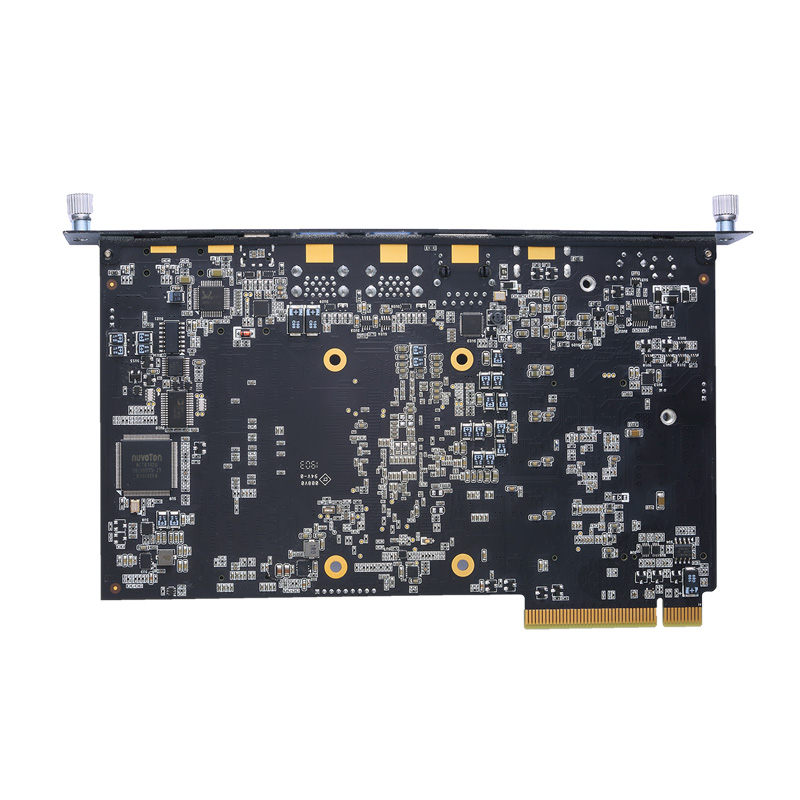

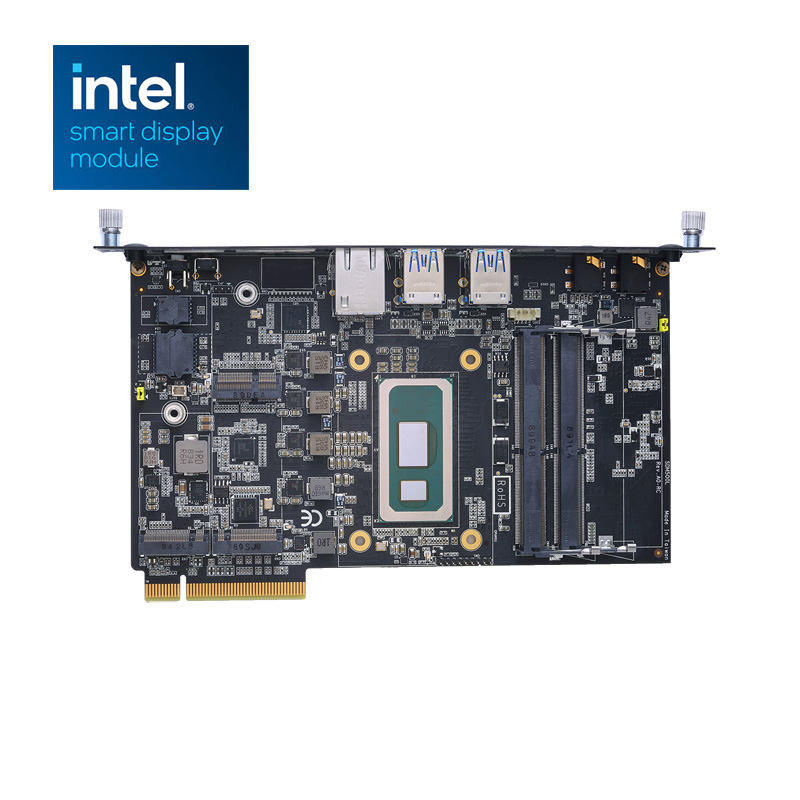

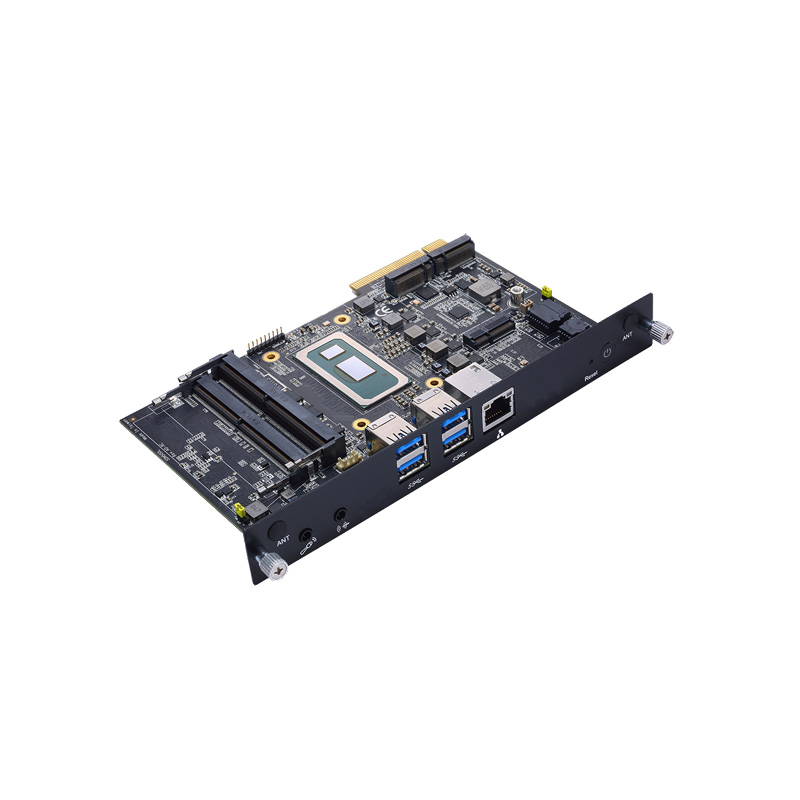

The SDM500L is powered by the onboard 8th generation Intel® Core™ i7/i5/i3 processor with the Intel® Generation 9 HD Graphics chipset. The Intel® Smart Display Module-Large (Intel® SDM-L) measures just 175 x 100 mm and a maximum z-height of 1.6 mm, which is well-suited for ultra-slim displays. It can be easily connected to an SDM-compliant display via a high-speed PCIe x8 edge connector - which supports 4K resolution displays and video capture and has built-in USB 3.0, HDMI 2.0, DisplayPort 1.2, Serial TX/RX and I2C signals. With its excellent graphics performance and installation flexibility, the incredible signage module can satisfy diverse industry requirements and support a wide range of digital signage applications such as bedside terminals for hospital patients or factory automation solutions.
